Laboratory quick near edge x-ray absorption fine

structure spectroscopy in the soft x-ray range

with 100Hz frame rate using CMOS technology

Cite as: Rev. Sci. Instrum. 92, 023102 (2021); doi: 10.1063/5.0032628

Submitted: 12 October 2020 •Accepted: 24 January 2021 •

Published Online: 16 February 2021

Adrian Jonas,1,2,a) Steffen Staeck,1,2 Birgit Kanngießer,1,2 Holger Stiel,1,3 and Ioanna Mantouvalou1,2,b)

AFFILIATIONS

1Berlin Laboratory for Innovative X-ray Technologies (BLiX), D-10623 Berlin, Germany

2TU Berlin, Analytical X-Ray Physics, D-10623 Berlin, Germany

3Max-Born-Institut für Nichtlineare Optik und Kurzzeitspektroskopie, D-12489 Berlin, Germany

a)Author to whom correspondence should be addressed: [email protected]

b)Current address: Helmholtz Zentrum Berlin, D-12489, Germany.

ABSTRACT

In laboratory based x-ray absorption fine structure (XAFS) spectroscopy, the slow readout speed of conventional CCD cameras can prolong

the measuring times by multiple orders of magnitude. Using pulsed sources, e.g., laser-based x-ray sources, the pulse repetition rate often

exceeds the frame rate of the CCD camera. We report the use of a scientific CMOS (sCMOS) camera for XAFS spectroscopy with a laser-

produced plasma source facilitating measurements at 100Hz. With this technological improvement, a new class of experiments becomes

possible, starting from the time consuming analysis of samples with small absorption to pump-probe investigations. Furthermore, laboratory

quicksoftx-rayabsorptionfinestructure(QXAFS)measurementswith10mstime resolution are rendered feasible. We present the character-

ization of the sCMOS camera concerning noise characteristics and a comparison to conventional CCD camera performance. The feasibility

of time resolved QXAFS measurements is shown by analyzing the statistical uncertainty of single shot spectra. Finally, XAFS spectroscopy on

a complex sandwich structure with minute amounts of NiO exemplifies the additional merits of fast detectors.

Published under license by AIP Publishing. https://doi.org/10.1063/5.0032628

I. INTRODUCTION

X-ray absorption fine structure (XAFS) spectroscopy is an

analytical tool for the investigation of the element specific elec-

tronic structure of atoms or molecules inside a sample. In quick

x-ray absorption fine structure (QXAFS) measurements, absorption

spectra are taken in quick succession to resolve dynamical pro-

cesses in the millisecond to minute range.1–10 The technique is a

powerful tool for investigating in situ reactions and slow dynamic

processes. XAFS is currently most commonly performed at syn-

chrotron radiation facilities due to the available high flux and effi-

cient instrumentation. For measurements, the excitation energy is

scanned in the region of the probed absorption edge and absorption

is measured via transmission, fluorescence, or electron detection.

For QXAFS measurements, only synchrotron radiation experiments

have been presented up until now, with a focus on hard x rays and

the extended XAFS (EXAFS) region and limited applications in the

soft x-ray regime.11,12

In the laboratory, x-ray sources are invariably less brilliant,

which triggered the use of scan-free approaches for XAFS, where

the polychromatic excitation radiation is first transmitted through

a sample and then detected with wavelength dispersive instrumen-

tation. Today, soft XAFS setups in the laboratory use light from

high harmonic generation sources13–18 or laser-produced plasma

(LPP) sources19–21 together with dispersive optics and position

sensitive detectors. In all published cases, a large area CCD sensor

is used to collect the spatially separated photons. CCD sensors

show a high sensitivity in the soft x-ray region, a very low noise

level, and a large active sensor area, which is crucial for a high

spectral resolving power and bandwidth. The downside of these

large CCD sensors is the readout time, which ranges from hundreds

of milliseconds to seconds. These readout times can prolong

Rev. Sci. Instrum. 92, 023102 (2021); doi: 10.1063/5.0032628 92, 023102-1

Published under license by AIP Publishing

Review of

Scientific Instruments ARTICLE scitation.org/journal/rsi

the measuring times by multiple orders of magnitude if sin-

gle shot measurements are advantageous or mandatory and

would result in a time resolution of seconds for QXAFS

investigations.22 Advances of laser-based laboratory soft x-ray

sources with repetition rates of 100Hz to MHz call for detec-

tors that can reach equal frame rates. Electron-multiplying

CCDs or pn-CCD cameras manage the high repetition

rates but show an inadequate image area or pixel size, limiting

either the energy range or energy resolution of the measured XAFS

spectra.

CMOS sensors are used in numerous scientific and non-

scientific applications ranging from consumer electronics to space

missions.23 For most applications, front-illuminated cameras are

used, which are equipped with microlens arrays to improve the

sensitivity in the visible spectral range. For the detection of soft

x rays, CCD cameras still find widespread use and only recently

suitable CMOS camera chips are becoming available.24–26 One of

the key differences between common CMOS and CCD cameras is

that a CCD sensor has only one readout unit, while in a CMOS

detector each pixel or each pixel row converts the electrons into

voltageand amplifiesitindividually. Thisleadsto muchhigherread-

out rates at the cost of additional noise contributions in CMOS

detectors.Duetomultipleamplifiers,thedarksignalnon-uniformity

(DSNU), defined as the temporal noise adjusted standard devia-

tion of the pixel base values, and the pixel response non-uniformity

(PRNU), which describes the standard deviation of the pixel gain,

must be taken into account for CMOS detectors. Very recently,

back-illuminated 16-bit scientific CMOS (sCMOS) sensors without

on-chip microlenses became commercially available and were char-

acterized regarding energy and spatial resolution, noise level, and

soft x-ray quantum efficiency24–27 with results showing the potential

of sCMOS cameras for soft x-ray applications.

In this article, we present measurements regarding the noise

and gain values of a modified Tucsen Dhyana 95 sCMOS camera,

which are crucial when measuring small signals. Using a laboratory

XAFS setup based on a laser-produced plasma source operating at

a repetition rate of 100Hz, a reduced acquisition time compared

to the use of a standard CCD camera is presented. The ability to

perform QXAFS measurements with up to 10ms time resolution is

demonstrated and discussed. Finally, a sandwich sample with very

low absorption at the Ni L edge is investigated demonstrating the

advantages of high speed soft x-ray cameras.

II. EXPERIMENTAL

A. Scientific CMOS and CCD camera

The camera used is the commercially available Tucsen Dhyana

95 V1 with a 4 MPixel (2048 ×2048) resolution, a chip size of

22.5 ×22.5mm2, and a pixel size of 11 ×11 μm2. The sCMOS is

based on the back-illuminated GSENSE400BSI sensor by GPIXEL

Inc., with the quantum efficiency increasing from 0.3eV at 284eV

(CK-edge)to0.8at1303eV(MgK-edge).25 Itcanbecooleddownto

−20○C using a Peltier element and air cooling. Using the full frame

and 16-bit pixel values, the camera can collect 24 frames per second

(fps). The camera has readout electronics for each pixel row, so by

choosing a fragmentary number of rows to be read out, the frame

rate can be increased. If a cutout with 460 rows or less is selected,

100fps can be reached. The camera offers two measurement modes,

the High Gain (HG) mode and High Dynamic Range (HDR) mode,

the former using a higher gain and lower dynamic range compared

to the latter.

ThesCMOS cameraisdesigned forvisiblelightandis equipped

with an entrance window and commonly with an anti-reflection

coating on the chip. To be used for soft x-ray detection, the entrance

window was removed and an ISO–K 160 flange was attached on the

front side of the camera. The modified camera is depicted in Fig. 1.

The used CCD camera is the GE 2048 2048 from Greateyes

GmbH.28 Its back-illuminated chip is 27.6 ×27.6mm2large and has

a pixel size of 13.5 ×13.5 μm2. The quantum efficiency ranges from

0.65 at 284eV (C K-edge) to 0.8 at 1303eV (Mg K-edge). The gain

is 1 count/e−, and the full well capacity is 100 ke−. At −20○C and

1MHz readout speed (0.25fps), the camera features a readout noise

of 8.5 e−and a dark noise of 1 e−/pixel/s.

B. Experimental setup

In this work, a laser-produced plasma (LPP) was used as the

source of soft x-ray radiation. The source is explained in detail in

Ref. 29. Briefly, the LPP consists of a Yb:YAG thin disk laser with a

repetition rate of 100Hz and a solid state metal target. A laser pulse

with a wavelength of 1030nm and a pulse energy of up to 200 mJ is

focused onto a rotating cylinder with a changeable target material

(typically Cu or W), which forms a hot dense plasma with a

size in the range of 50 μm (FWHM). The pulse duration can be

continuously varied between 0.5ns and 30ns. The plasma

emits polychromatic and isotropic radiation in the range of

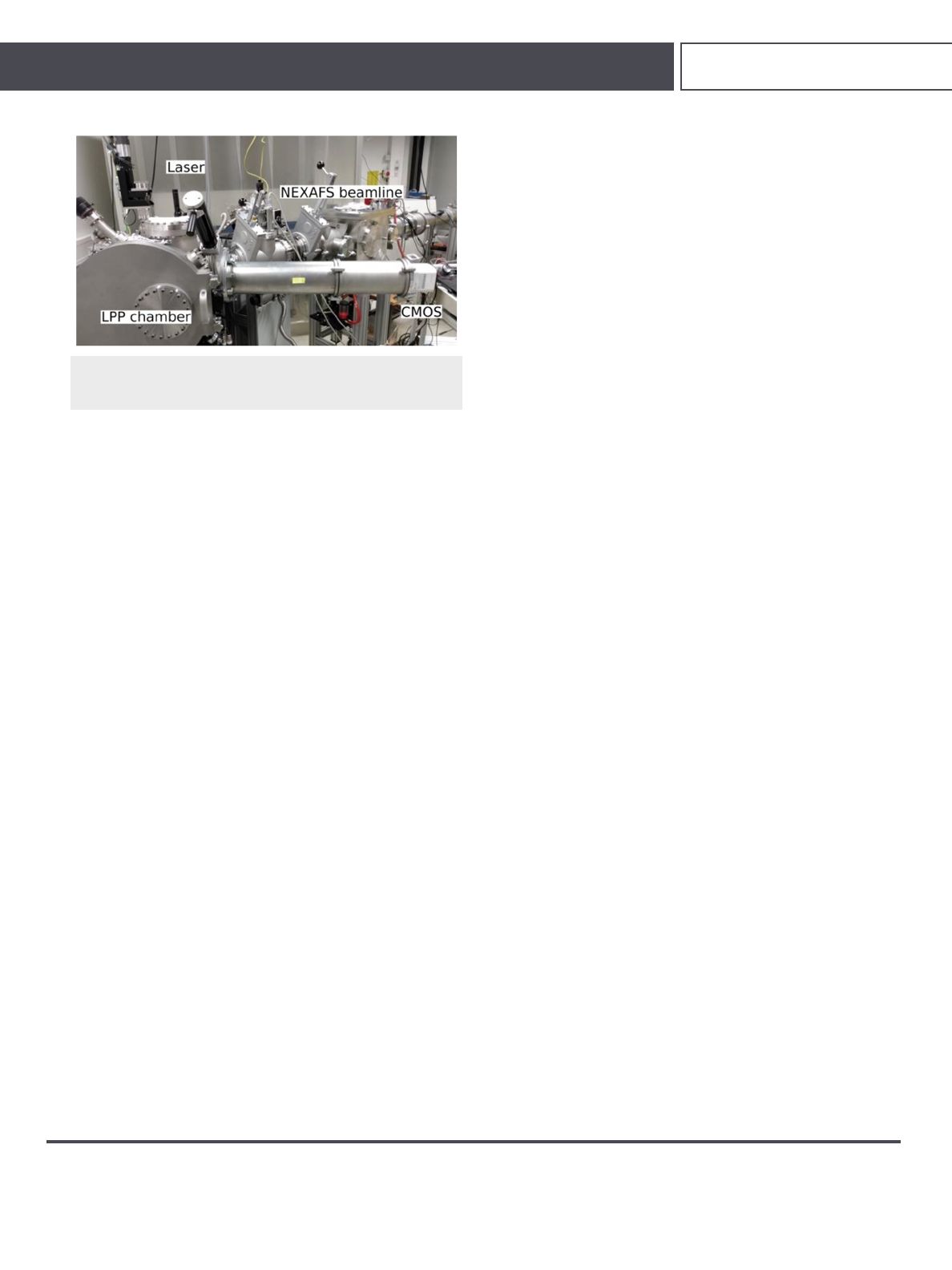

100 eV–1600eV. A photograph of the setup is shown in Fig. 2.

The XAFS measurements were performed using a twin-arm

reflection zone plate spectrometer previously described in Ref. 22.

The sample is measured in transmission mode, and the incident

x-ray spectrum is collected simultaneously using a pair of off-

axis reflection zone plate optics. A 200nm thick Al filter blocks

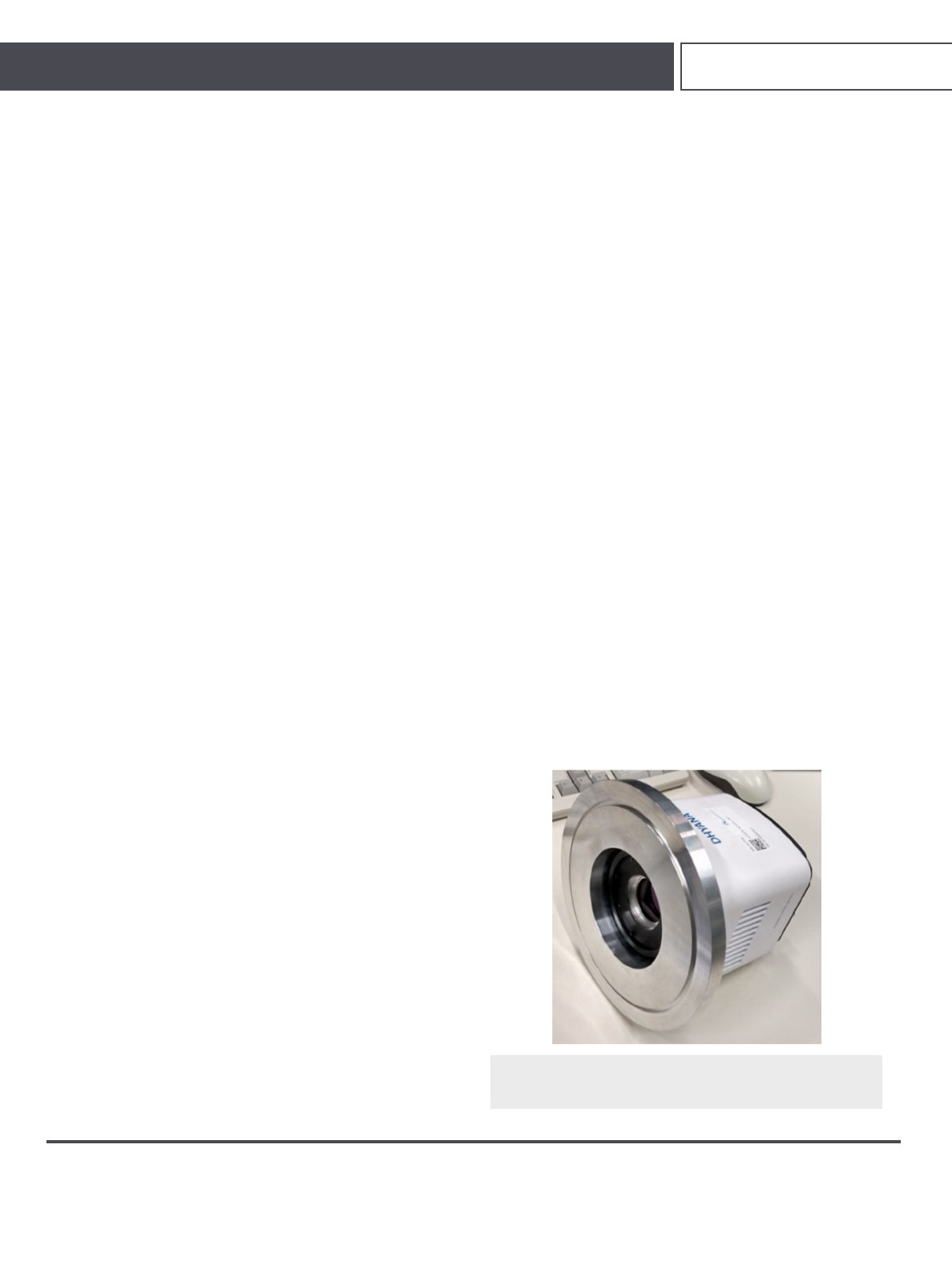

FIG. 1. Photograph of the Tucsen Dhyana 95 sCMOS camera that was modified

for the use in the soft x-ray range. The entrance window was removed and an

ISO–K 160 vacuum flange was attached.

Rev. Sci. Instrum. 92, 023102 (2021); doi: 10.1063/5.0032628 92, 023102-2

Published under license by AIP Publishing

Review of

Scientific Instruments ARTICLE scitation.org/journal/rsi

FIG. 2. Photograph of the setup including the Yb:YAG thin disk laser, the LPP

chamber, and the two beamlines used for the characterization measurements

(front) and the XAFS measurements (back).

residuallaser light, thevisiblepartof theemissionspectrumand sec-

ond order diffraction. The dispersed light is collected using either

the sCMOS or the CCD detector. The CCD is cooled down to

−30○C, and the sCMOS chip is operated at T =−15○C for all pre-

sentedmeasurements. Theabsorption ofthesampleisthen obtained

by the natural logarithm of the incident x-ray spectra divided by

the sample spectra. Through the use of multiple pairs of zone

plates, all existing absorption edges between 284eV (C K-edge) and

1303eV (Mg K-edge) can be measured with a resolving power

of E/ΔE≥900. The resolving power of the spectrometer at the

Ni L-edges amounts to roughly 1000. The whole spectrometer is

under high vacuum conditions (10−6mbar).

For the characterization of the sCMOS, the camera was

mounted to the chamber in 110cm distance to the target. The gain

was determined using monochromatized radiation and the single

photon counting procedure. To attenuate the produced radiation

to a photon flux suitable for single photon counting, four layers of

aluminum foil of a total thickness of 52 μm were inserted between

the target and the detector. The copper plasma emission spectrum

convoluted with the transmission of the Al filters results in a mean

photon energy of Emean =(1440 ±30) eV.

The gain was measured via single photon counting. Frames

with 10ms exposure time were recorded continuously with the LPP

at a repetition rate of 100Hz so that one shot was recorded on each

frame on average. 200 frames and 300 dark frames were recorded

for each measurement. The median of all dark frames was sub-

tracted, and for each pixel, the standard deviation was calculated.

Thestandarddeviation values were then usedtodeterminethenoise

thresholds for each pixel. The algorithm used to detect photon

events on the frames and to assign an intensity value in analog-to-

digitalunits (ADU)wastheclusteringalgorithm describedinRef.30

with threshold values of σ1=6 and σ2=3. To determine an accurate

result for the camera gain, only one-pixel events were evaluated.

The sCMOS dark current was measured by recording dark

frames for exposure times between 1s and 10s, with 20 frames for

each measuring point. Since the detector shows some regions with

unusually high dark current at the edges of the chip, only a section

of the total frames was evaluated to avoid distortion of the results.

This value can be seen as a lower limit for the dark current, while

an upper limit is provided by evaluating the whole frame. The mean

values of the selected region were plotted over exposure time and

the dark current was obtained from the slope of the linear fit. The

actual fit error was slightly raised to one significant digit to account

for possible small temperature fluctuations.

The readout noise was measured by taking five times 500 dark

frames with 20 μs exposure time each, so that the dark noise is neg-

ligible. The standard deviation from 500 dark frames was calculated

for each pixel and averaged for the whole frame. For the five mea-

surement series, the mean value was calculated. Since the standard

errors for both HG and HDR modes are smaller than the difference

of both mean values, the errors were estimated on the basis of this

difference.

The noise contribution originating from differing offset values

ofthepixels,thedarksignal non-uniformity (DSNU), was measured

with the same set of dark frames. For each set of 500 dark frames,

the mean value for each pixel was calculated and from those val-

ues the DSNU was determined by calculating the standard deviation

of the mean pixel values and subtracting the temporal noise. This

step was repeated for each set of 500 frames, and the mean value

and thestandard error were calculated from the five sets. Prior mea-

surements have shown differing values outside of the calculated

error range, so a greater error was estimated based on the difference

of the results.

For measuring the gain dependent part of the overall noise

originating from the different gain characteristics of the readout

amplifiers (pixel response non-uniformity, PRNU), flat field frames

are necessary, where the sCMOS chip is homogeneously illuminated

to investigate the different pixel responses. As a simple alternative

to an Ulbricht sphere, a gooseneck lamp combined with a pinhole

as the source of homogeneous illumination in the visible range was

used for the flat field frames. Frames were recorded for exposure

times between 100ms (10% saturation) and 250ms (50% satura-

tion) in 50ms steps in the HDR mode. For every measuring point,

500flatfieldframesinadditionto250darkframesweretaken,which

were averaged and subtracted from the flat field frames to mitigate

the DSNU. The relative PRNU was estimated by dividing the frame

standard deviation by the mean frame value. A homogeneous part

of the frame was chosen to obtain a lower estimate for the PRNU,

while the whole frame was evaluated for an upper estimate (assum-

ing some degree of non-uniformity in the illumination). The mean

values of the four measuring points were calculated. For the opera-

tionofthesCMOScamera,themanufacturer’ssoftwareMosaic1.6.1

was used.

C. Samples

For the XAFS measurements, a Ni sample has been fabri-

cated by resistive thermal evaporation at the nanoscale lab of the

Max–Born-Institute (MBI). The sample consists of a thin Ni layer

with a thickness of 100nm on top of a 150nm thick Si3N4window

with a size of 3 ×3 mm2.

As another example, a sandwich sample consisting of three lay-

ers (TiO2on Au-nanoparticles on NiO) was measured at the Ni

L-edges. The exact layer thicknesses are unknown but it is expected

that they amount to some tens of nanometers. The sample was

prepared on a 150nm thick, 1 ×2mm2Si3N4window. The sam-

ple system finds application as a plasmonic solar cell prototype

device.31,32

Rev. Sci. Instrum. 92, 023102 (2021); doi: 10.1063/5.0032628 92, 023102-3

Published under license by AIP Publishing

Loading more pages...
