Journal of Eye Movement Research, 15(3):9

https://doi.org/10.16910/jemr.15.3.9

Introduction

The use of the human gaze to interact with machines or

software has become a viable alternative to traditional

means of input. Compared to mouse control, gaze-based

interaction techniques can be faster and particularly useful

in situations where both hands are needed to perform a task

(Sibert & Jacob, 2000) or in hygiene-critical situations,

such as surgery (Mewes et al., 2017).

Especially smooth pursuit movements have proven

suitable to provide a range of unobtrusive interaction

methods, that allow a broad range of users to interact ef-

fectively with gaze-controlled interfaces. Applications

range from novel takes on gaze-spelling that let users se-

lect their target letter by simply following its’ movement

A systematic performance comparison of

two Smooth Pursuit detection algorithms

in Virtual Reality depending on target

number, distance, and movement patterns

Sarah-Christin Freytag

TU Berlin, Berlin, Germany

Roland Zechner

TU Berlin, Berlin, Germany

Michelle Kamps

TU Berlin, Berlin, Germany

We compared the performance of two smooth-pursuit-based object selection algorithms in

Virtual Reality (VR). To assess the best algorithm for a range of configurations, we system-

atically varied the number of targets to choose from, their distance, and their movement

pattern (linear and circular). Performance was operationalized as the ratio of hits, misses

and non-detections. Averaged over all distances, the correlation-based algorithm performed

better for circular movement patterns compared to linear ones (F(1,11) = 24.27, p < .001, η²

= .29). This was not found for the difference-based algorithm (F(1,11) = 0.98, p = .344, η²

= .01). Both algorithms performed better in close distances compared to larger ones (F(1,11)

= 190.77, p < .001, η² = .75 correlation-based, and F(1,11) = 148.20, p < .001, η² = .42,

difference-based). An interaction effect for distance x movement emerged. After systemat-

ically varying the number of targets, these results could be replicated, with a slightly smaller

effect.

Based on performance levels, we introduce the concept of an optimal threshold algorithm,

suggesting the best detection algorithm for the individual target configuration. Learnings of

adding the third dimension to the detection algorithms and the role of distractors are dis-

cussed and suggestions for future research added.

Keywords: Eye movement, Eye Tracking, Smooth Pursuit, VR, Virtual Reality,

correlation-based algorithm, vector-angle based algorithm

*Corresponding author: Sarah-Christin Freytag, sarah.frey[email protected]-berlin.de

Received February 08, 2023; Published May 29, 2023.

Citation: Freytag, S.-C., Zechner, R. & Kamps, M. (2023). A systematic performance comparison of

two Smooth Pursuit detection algorithms in Virtual Reality depending on target number, distance, and

movement patterns. Journal of Eye Movement Research, 15(3):9. https://doi.org/10.16910/jemr.15.3.9

ISSN: 1995-8692

This article is licensed under a Creative Commons Attribution 4.0 International license.

Journal of Eye Movement Research Freytag, S.-C., Zechner, R., & Kamps, M. (2023)

15(3):9 A systematic performance comparison of two Smooth-Pursuit Algorithms in VR

with their eyes (Cymek et al., 2014; Khamis et al., 2016;

Lutz et al., 2015) to controlling smart-phone applications

by observing the movement speed of icons for applica-

tions, that, after surpassing a specific matching-criterion,

will then be opened (Esteves et al., 2015). The ease of use

and usage of very natural gaze movements make these in-

teractions also suitable for interactions in public spaces

(Khamis et al., 2015; Vidal et al., 2013) and have shown

promising results when tested with large databases of users

(Freytag, 2020).

One of the great advantages of employing smooth-pur-

suit for interaction is the reduction of the Midas touch

problem, which states that for interactions that require

dwell-time-based approaches, a distinction between a rest-

ing gaze that indicates the intention to select and one that

was evoked by the wish to examine cannot sufficiently be

made (Huckauf & Urbina, 2008; Vidal et al., 2012).

All these applications use one of two algorithms to

compare the eye movements of the user with the move-

ment patterns of the UI elements: a correlation-based algo-

rithm, using the Pearson’s product-moment correlation,

and an algorithm based on vectors using the Euclidean dis-

tance. These algorithms are well-researched for interac-

tions on a 2D-plane. In addition to these, Drewes et al.

(2019b) introduced a novel slope approach, using the slope

of a linear regression line for object detection, showing a

possible detection for up to 160 individual objects, based

on circular movement on several rings of objects. How-

ever, this approach was tested in 2D as well.

Since the introduction of the Oculus Rift DK1 at the

end of 2012 (Kickstarter.com, 2012), the technological

progress as well as the availability of Head-Mounted Dis-

plays (HMDs) for the consumer market have skyrocketed

(Gamesradar, 2022). The integration of eye-tracking tech-

nology into HMDs followed suit. In only a span of a few

years the solutions developed from research editions pro-

vided by eye-tracking manufacturers over clip-in solutions

to, finally, the mass-production of consumer-level hard-

ware with eye-tracking integrated by default (VIVE,

2022). This widespread availability of eye-tracking data

during usage of HMDs opens the door for integrating gaze-

based interactions by default into consumer media. It also

provides researchers with an abundance of opportunities to

investigate the transferability of what is known to work in

2D to 3D virtual reality applications.

The natural navigation of the visual space provided by

HMDs suggests that the observed gaze behavior would be

close to natural, with no artificial affordances of control

disrupting the visual exploration of the virtual world Due

to this, VR could potentially overcome shortcomings of

lab experiments by providing a semi-realistic experience

that surpasses artificial lab settings (Clay et al., 2019;

Lappi, 2015). However, there also are challenges unique

to experiences of VR via HMDs. One is the users' potential

ability to physically move across the 3D environment.

Khamis et al. (2018) investigated the influence of user

movement, target size, the distance to targets, and the ra-

dius of circular object trajectories on the performance of a

correlation-based algorithm, showing that, while still

yielding sufficient results, movement reduced the accuracy

of selections and negatively impacting the performance.

For our study, we chose to keep all of these parameters

except for distance constant and our participants stationary

across all conditions to control for possible effects.

Another challenge is the Vergence-Accomodation con-

flict. When focusing on an object in a natural setting, the

focal distance of the eye and the vergence align. While

viewing a scene via a HMD however, the vergence of the

users’ eyes is set to the virtual distance of the focused ob-

ject behind the screen of the HMD – while the focal dis-

tance is set to the screen. This creates a mismatch which

does not exist in the natural world and might lead to eye

strain (Dörner et al., 2013) and possibly slightly influence

the individual vergence response itself (Neveu et al.,

2012). However, the additional gaze information along the

third axis remains available over the course of the interac-

tion in VR. Can this information be useful to improve

smooth-pursuit algorithms in 3D?

While previous studies investigated the performance of

smooth-pursuit algorithms in 3D VR, either correlation-

based (Khamis et al., 2018) or based on the Euclidian dis-

tance (Piumsomboon et al., 2017), the depth information

of a third axis was not yet included in the calculations.

Breitenfellner et al. (2019) conclude that so far there was

no extension to the existing 2D smooth pursuit algorithms

for the use in VR. While Khamis et al. (2018) found no

significant effect of distance on the correlation-based al-

gorithms' performance, we assume that distance will affect

the performance once the third dimension is included and

providing additional information to the detection algo-

rithms.

Journal of Eye Movement Research Freytag, S.-C., Zechner, R., & Kamps, M. (2023)

15(3):9 A systematic performance comparison of two Smooth-Pursuit Algorithms in VR

The aim of the study was to systematically examine the

potential of incorporating gaze information along the 3rd

dimensional axis into the two currently most-widely used

algorithms typical for 2D-smooth-pursuit interaction. One

correlation-based algorithm and one distance-based algo-

rithm were adapted to 3D. In a first experiment, the perfor-

mances of both algorithms were examined by systemati-

cally varying parameters of distance and trajectory of ob-

ject movement. During this experiment, only one object

was visible at all times, allowing for the assessment of se-

lection performance under ideal conditions.

The second experiment focused on the performance of

the algorithms while additional objects to choose from

were visible. The number of additional objects to choose

from, as well as the configuration within the 3D space was

varied systematically to test the algorithms under ecologi-

cally valid conditions.

The following section introduces the algorithms, fol-

lowed by the methods, and a description of the virtual en-

vironment, which were used for both experiments. After

that, details and outcomes of both experiments are pre-

sented individually, followed by a critical discussion and

outlook.

Algorithms and dependent variables

While 2D smooth-pursuit algorithms often use screen

coordinates to match targets and gaze, a 3D environment

requires adjustments. Instead of x-, y- and z-coordinates,

we defined the center of the HMD as the origin of a spher-

ical coordinate system and matched its position to the

origin of the world-space in our virtual environment. Dis-

tances were calculated as radial distance r with positions

being defined by the radius r and the angles theta θ and phi

φ for pitch and yaw respectively (Figure 1).

The 3D Point of Regard (3D-POR) was used for gaze

estimation and defined as the mid-point between the re-

spective points on the gaze vectors of each eye where the

distance between both vectors reached its minimum. Both

of the following algorithms were initially tested against a

variable threshold. Determining the ideal threshold level

for both algorithms respectively was part of experiment 1.

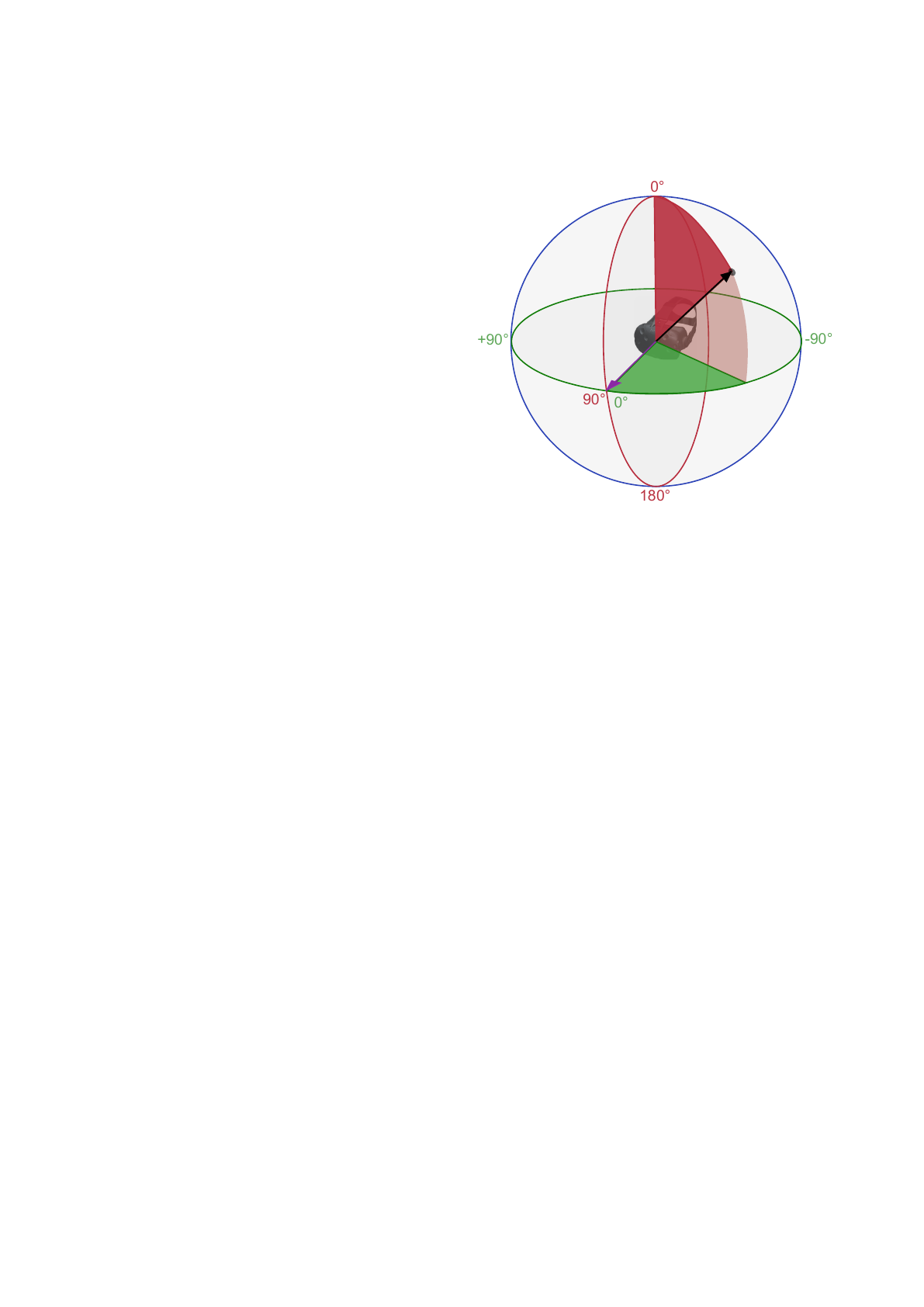

Figure 1. Illustration of the HMD-based coordinate system with

radius r, pitch θ, and yaw φ.

A correlation-based algorithm was adapted from the

correlation-based algorithm for 2D smooth-pursuit as de-

scribed by Vidal et al. (2013). This algorithm calculates

the product-moment correlation between gaze coordinates

and the coordinates of the moving target. Instead of x and

y-coordinates, the 3D-adapted algorithm uses r, θ and φ for

the calculations.

The difference-based algorithm was based on the ap-

proach by Lutz et al. (2015). The authors calculate the dif-

ference between the movement vector of targets and gaze

as well as the difference in angle of the movement vectors

in relation to the x-y plane. Targets are selected when both

criteria fall below a selection threshold. This algorithm

was adapted to 3D by using the radial distance r as well as

θ and φ of the moving targets to calculate the difference to

the gaze path.

Workflow

For each new frame, first the validity of the gaze data

was assessed (see Figure S1). Next, a 3D-POR was calcu-

lated and added to a Vector3-field storing the last x amount

of samples, with x being defined as the size of a moving

window. Upon reaching the maximum sample size, the

currently oldest sample would be removed upon adding the

new sample. Simultaneously, the object coordinates of

each target object were stored in an identical manner in re-

spective Vector3 fields. After updating the 3D-POR

0°

180°

90°

-90°

0°

+90°

3D-POR

Theta [°]

Radius [m]

Phi [°]

Journal of Eye Movement Research Freytag, S.-C., Zechner, R., & Kamps, M. (2023)

15(3):9 A systematic performance comparison of two Smooth-Pursuit Algorithms in VR

coordinates in the described manner, the respective algo-

rithms started calculating as follows:

The correlation-based algorithm iterates over all

possible interaction objects and calculates product-mo-

ment correlations between the gaze and object coordinates

for each object respectively. The calculations are per-

formed for each dimension (radius, θ, φ). In contrast to the

approach in 2D, where individual correlations are com-

pared to a threshold directly, we chose to calculate the av-

erage of all correlation coefficients for each object. While

this potentially introduces an uncorrelated parameter, the

effect will be the same for all respective samples which

remain distinguishable via the remaining parameters. A

lowering of the correlation threshold during these situa-

tions will be tested, akin to the Algorithm tested by

Khamis et al. (2018).

Upon calculating the correlation coefficients of all ob-

jects, the algorithm searches for the highest overall coeffi-

cient. If this correlation surpasses the particular threshold,

the respective item is marked as selected by the participant.

The difference-based algorithm first splits the gaze

data Vector3 field in half based on timestamps. The pa-

rameters of the halves containing the oldest and newest

gaze vectors respectively are averaged. The most recent

averaged gaze coordinates refer to the end point of the gaze

vector, the averaged coordiantes of the other half consti-

tute the origin of the gaze vector. By averaging the gaze

data over several samples, we smooth the data and prevent

obtaining false correlation values due to outliers. The end-

point of each averaged half of the Vector3 field is sub-

tracted from the respective starting point in order to obtain

a movement vector ranging from start to finish of the

movement as recorded by the field interval, resulting in

∆

_"#$#%

These steps are performed for the gaze data as well as

for the positional coordinates of each object. In order to

achieve a relation between the object and gaze movement

vectors, the difference coefficients for r, θ and φ are cal-

culated as follows:

(1)

∆$#&'()=

∆

!"#$%&

(

()*+,-.

)

∆

!"#$%&

(

()*+,-.

)

-.∆

!"#$%&

(

0"1+.

)

−0.5

(2)

∆/=*

∆

2(()*+,-.)

∆

2(()*+,-.)-.∆

2(0"1+.) −0.5

(3)

∆0=*

∆

(

()*+,-.

)

∆

(

()*+,-.

)

-.∆

(

0"1+.

)

−0.5

The obtained coefficients illustrate the difference be-

tween gaze radius r, gaze angle theta θ and gaze angle phi

φ and the respective object parameters. The coefficients lie

within the range of [0; ∞]. A coefficient of 0 indicates a

perfect fit between gaze and object parameters.

The calculated difference coefficients can be graph-

ically expressed on a logarithmic scale based on the loga-

rithm of ten. For example, if the object difference vector is

kept constant at 10, a symmetrical image results for a var-

iable gaze difference vector for positive numbers (see Fig-

ure 2). The difference coefficient would reach its mini-

mum of 0 at a gaze vector of 10 and its maximum of 0.5 at

a gaze vector of 0. Likewise, at high positive deviations,

approximately 0.5 is reached. If the gaze moves in the op-

posite direction to the object, differential coefficients of >

0.5 are always achieved. Except in the special case that the

gaze difference value should reach exactly the negative ob-

ject difference value, no calculation of the difference coef-

ficient is possible by a division by 0. This case should

hardly occur practically.

Figure 2. Visualization of the relation between the ratio of gaze

to object movement and the resulting difference coefficient (for

one dimension).

In order to account for different distances and to correct

the 3D POR error, the three coefficients r, θ and φ are av-

eraged over all samples within the moving window. The

algorithm then compares the sum with the threshold. The

threshold level itself is adaptable and the determination of

the ideal threshold level part of experiment 1.

Dependent Variables

The following section explains the parameters that

were analyzed as dependent variables in both experiments.

Detection rate (DR). A true positive (TP) detection

was defined by the target object surpassing the selection

threshold for the respective algorithm. A false positive

(FP) was defined as the algorithm detecting any other

0.0

0.1

0.2

0.3

0.4

0.5

0.1 110

Difference

coefficient for one

single dimension

Ratio of gaze to object movement

Journal of Eye Movement Research Freytag, S.-C., Zechner, R., & Kamps, M. (2023)

15(3):9 A systematic performance comparison of two Smooth-Pursuit Algorithms in VR

object but the currently visible one as selected. No detec-

tion (ND) took place if the threshold was not surpassed for

any of the objects. The detection rate relates these param-

eters akin to the assessment of a binary classificator:

(4)

𝐷𝑅=*

∑

23-.

∑

43-

∑

The rates of false positives (FPR) and non-detections

(NDR) were calculated likewise.

Efficiency. The efficiency expresses the ratio of true

detections to overall detections:

(5)

𝐸𝑓𝑓=*

∑

23-.

∑

Duration until selection. As long durations until de-

tections can invoke frustration in users (Khamis et al.,

2018), the duration until the algorithm was able to select

any object was introduced as additional criterion for com-

paring the performance of the algorithms. The duration is

expressed both in frames per second (fps) and in s.

Further Variables. To indicate the participants’ focus

on the task, the task performance of the participants, meas-

ured as the sum of points related to the given task, and av-

erage reaction time per condition, was tracked.

Methods

The following section describes the material used in

both experiments. Differences between both settings are

pointed out where applicable.

Virtual Environment. A virtual environment was cre-

ated with the Unity Game Engine (Unity, 2017). The envi-

ronment is seen from the viewpoint of a person standing

on a small planet of 2m diameter (Zehm, 2017) in front of

a starry sky. The environment was kept intentionally plain

to reduce the influence of head movements on the task

(Anderson & Bischof, 2019). An X on the planet marked

the ideal position for the subjects. A light source was

placed above and slightly behind the subject to prevent

blinding. A chicken inside a semi-transparent spherical

spaceship was introduced as a moving target (“Vertex

Cat”, 2017). The target was kept visually plain to prevent

sustained scanning of the details while hopefully being

sufficiently entertaining to maintain subjects’ motivation.

A high contrast to the backdrop was chosen to facilitate

visual detection (see Figure 3). The target had a diameter

of 0.07m, equaling to 10° visual angle in the close

condition and 2.9° visual angle in the far condition. The

size was chosen based on the results of a pre-test, consti-

tuting a compromise between identifiability over different

distances and simplicity.

Figure 3. Virtual environment displaying the users' position.

Lower right corner: the target object "space chicken" in a close-

up.

Number of objects. A maximum number of 26 indi-

vidual objects being present at once was chosen in order to

prevent possible ceiling effects regarding the performance

of the algorithms. The high number allowed for the testing

of a variety of unique movement directions within the 3D

space and was therefore increased, comparing to similar

studies in 2D (e.g. Zeng et al., 2020). During the first ex-

periment, only one of the objects was visible while the oth-

ers remained hidden to the user, but were taken into ac-

count during the analysis. This approach was chosen to fa-

cilitate sustained and ideal smooth-pursuit movements on

one target, without other distractions. With this approach,

the algorithms could be tested under an idealized, highly

standardized smooth pursuit movement performed by the

participants. The second experiment introduced visibility

of a systematically varied number of distractors in order to

retest the resulting ideal performance as it would occur “in

the field” with a natural ecological validity (see experi-

ment 2).

Distances. Two distances (near / far) were imple-

mented after having been selected for optimal usability and

prevention of eye strain in a pre-test. In the “near” condi-

tion the center of a spawn sphere was set to an origin at

0.4m distance (with the sphere spanning from 0.2 - 0.6m)

to provide a substantial vergence of the eyes, while simul-

taneously being far enough to prevent eyestrain or irrita-

tion and disorientation due to too large portions of the vis-

ual field moving. The “far” condition set the center of the

spawn sphere at 1.4m distance (spanning from 1.2m to

1.6m) to test the performance of the algorithm near the

limit of depth detection due to parallelization of the eyes.

Journal of Eye Movement Research Freytag, S.-C., Zechner, R., & Kamps, M. (2023)

15(3):9 A systematic performance comparison of two Smooth-Pursuit Algorithms in VR

Based on the 0.2° error as assumed for the SMI eye-

tracker, this results in an error margin of 0.02m in the near

condition and of 0.22m in the far condition. The distances

were slightly adapted in experiment 2 (see experiment 2).

Movement patterns. Movement was performed in ei-

ther a circular motion or in a linear motion originating

from the center of the subject’s field of view. The object

starting positions of the circular motions were distributed

across the surface of a sphere with a radius of 0.2m, being

projected from landmarks of the enclosed cube onto the

sphere’s surface. Each of the eight corners, each of the

mid-points between the 12 edges and the center point of

each side of the cube were projected onto the sphere, re-

sulting in 26 target spawn points overall. Seven trajectories

on the surface of the sphere were determined, each con-

taining 2-6 starting positions (see Figure 4, left). For linear

motions, the object spawned in the origin of the coordinate

system and moved linearly to and beyond the points de-

scribed for the circular starting positions (see Figure 4,

right). Velocities of each object were kept constant to min-

imize the occurance of potential artifacts due to anticipa-

tory changes in pursuit movements (Wende et al., 2016).

Figure 4. Movement patterns and arrangement of the 26 objects.

The labels indicate the starting positions for circular movements

(left) or the movement direction after spawning in the center for

linear movements (right).

Object velocities were set to 45°/s for the circular

movement and to 0.15m/s for linear movement. The veloc-

ities in degrees visual angle were dependent on movement

type and distance (see Table 1). The velocities were results

of a pre-test in which we determined the usability for the

subjects as well as the amount of smooth-pursuit move-

ment as opposed to saccades (as indicators of a too fast

movement) and fixations (indicating too low velocities).

Table 1. Overview of the spawnpoints of targets in the circular

move-ment condition, as well as the directional vector for linear

movement, and their velocity relative to the observer.

Movement

pattern

Distance of

the object

group

Targets

°/s

Circular

Near

rt, rb, b, lb, l, lt

22.5

15.0

45.0

Far

rt, rb, b, lb, l, lt

6.4

5.6

7.5

Linear

Near

rt, rb, b, lb, l, lt, t, r

21.5

f, n

0.0

Far

rt, rb, b, lb, l, lt, t, r

6.1

f, n

0.0

Note: The letters indicate left (l), right (r), near (n), far (f), top (t).

Task. In order to provide an incentive for sustained fo-

cus on the moving target, subjects were asked to press the

trigger button on the Vive Controller as soon as they de-

tected a fogging of the space capsule surrounding the

chicken to prevent it from flying blindly by clearing the

fog. The reaction via the trigger button on the controller

was tested in a pre-study and rated as non-distractive by

users. The trigger button was specifically chosen due to

being underneath the users' index finger, allowing for a

quick reaction without any visual or haptic search. The

fogging was timed randomly, with an average of one inci-

dent each 7.8s in the experimental blocks and of 8.4s in the

practice block. A swift reaction was rewarded by an af-

firmative sound and the award of points (3 points for a rt ≤

0.5s, 2 points for 0.5s < rt ≤ 1s and 1point for 1s < rt ≤1.5s).

A rt > 2.5s or lack of a reaction resulted in a reduction of

3 points and a dismissive sound being played. The points

were not indicated on the screen to prevent visual distrac-

tion, but participants were informed beforehand about the

effects of hits and misses, and that the game would keep

track of their score. After 2.5s, if no reaction occurred, the

object was returned to the non-foggy state. After each

block, the achieved points were displayed for the respec-

tive participant.

Technical Setup. We used the HTC Vive with inte-

grated Eye Tracking by SMI (250 Hz) with a resolution of

1080 px x 1200 per eye. The refreshment rate of the

screens was 90 Hz. The field of view (FOV) was 110°. The

typical error of the eye tracker was 0.2° (Schiavullo, 2016).

The experiments were run on an Alienware 17 R4 Laptop

with an Intel Core i7 processor, 32GB RAM and a

Journal of Eye Movement Research Freytag, S.-C., Zechner, R., & Kamps, M. (2023)

15(3):9 A systematic performance comparison of two Smooth-Pursuit Algorithms in VR

GeForce GTX 1080 with 8GB RAM. The VR-environ-

ment, run via Unity Play Mode, was displayed via

SteamVR (Built May 24, 2018).

Both experiments took place in a laboratory setting. A

desk was assigned at which participants filled out ques-

tionnaires testing for Simulator Sickness and assessing

technical issues after the VR experience. One third of the

laboratory was segmented via a cardboard divider and con-

tained a desk with the laptop running the experiment, the

VR-setup and a space of approx. 9m² for the subjects to

stand freely during the interaction with the VR.

Experiment 1

As described above, testing the reliability of the two

adapted algorithms in relation to a) distance and b) move-

ment pattern were the aim of this experiment. Furthermore,

suitable thresholds for both algorithms, depending on dis-

tance and object movement patterns were to be evaluated.

Hypotheses

Movement Patterns: Based on findings for 2D-exper-

iments (Vidal et al., 2013, Estevan, 2015) and recent find-

ings in 3D (Khamis, 2018) we assumed that circular move-

ment patterns would be associated with a better perfor-

mance for both algorithms compared to linear movement:

H1.1 The correlation-based algorithm performs, aver-

aged over all distances, better on circular movement pat-

terns compared to linear movement paths.

H1.2 The difference-based algorithm performs, aver-

aged over all distances, better on circular movement pat-

terns compared to linear movement paths.

Distances: Due to the increased estimation errors for

the radius in larger distances as described in Methods, we

assume a better performance at close distances for both al-

gorithms:

H2.1: The correlation-based algorithm performs, aver-

aged over linear and circular movement patterns, better in

the near condition compared to the far condition.

H2.2: The difference-based algorithm performs, aver-

aged over linear and circular movement patterns, better in

the near condition compared to the far condition.

Interaction: We assume that the impact of increased

eye tracking errors in larger distances and its’ effect on the

calculation of the radius is inequal for linear and circular

movement patterns due to the different proportion the ra-

dius calculation has for the overall algorithm:

H3.1: The change in detection rate (DR) between the

near and the far condition differs between circular and lin-

ear movement patterns for the correlation-based algorithm.

H3.2: The change in DR between the near and the far

condition differs between circular and linear movement

patterns for the difference-based algorithm.

No previous assumptions were made for the optimal

detection threshold level to be used for the algorithms. In-

stead, the threshold levels (TL) were analyzed iteratively

to find the optimal threshold for each algorithm. The com-

parison of the performance levels of both algorithms to

each other were of interest as well. Due to the multitude of

possible factors influencing the performance, no general

hypothesis about the superiority of any of both algorithms

was stated beforehand.

The task performance, as indicated by the amount of

points received in the detection task, was used as indica-

tion of the attention users directed to the interaction, and

with that, served as an indicator of the quality in which the

smooth-pursuit task was performed.

Experiment plan

The experiment encompassed one practice block, four

experimental blocks and one additional block. The

timespan of initiating and completing one singular object

movement was defined as one trial. One object movement

translates to the spawning of the target object, the space-

chicken remaining at rest for 1s and then moving along one

of the pre-defined paths for 4s.

The practice block contained four trials with linear

movement patterns in a pre-defined order and prolonged

movement durations (20s), taking approx. 1.5 minutes in

total. The subsequent four experimental blocks were pre-

sented latin square randomized and contained 78 trials

each. Each block represented one combination of the inde-

pendent variables (near/circular, near/linear, far/circular,

far/linear). The 78 trials were presented in three rounds,

with each round presenting all 26 possible object varia-

tions of the respective condition in a randomized manner.

Each block had a duration of 6.5 minutes.

Journal of Eye Movement Research Freytag, S.-C., Zechner, R., & Kamps, M. (2023)

15(3):9 A systematic performance comparison of two Smooth-Pursuit Algorithms in VR

The additional block displayed a variation of the move-

ment patterns and collected data for another research ques-

tion and will be discussed in a different work. It took 7.5

minutes to complete.

Experimental procedure

Subjects: N = 12 participants (6 ♀, 6 ♂) aged between

23 to 30 years (M = 27.4, SD = 1.8) took part in the first

experiment. Five persons had corrected to normal vision,

with three using contact lenses and two taking part without

corrective measures (-1 and -2 dpt). Half of all participants

were novice to interacting with a VR environment.

Participants were greeted, prompted to read the partic-

ipant information informing about the procedure and vol-

untary nature of the studies. Upon agreement, they filled

out a demographic questionnaire and were then handed the

instructions for the trial. If no questions remained, they put

on the HMD and were assisted if necessary. They were

then handed a Vive Controller to be used with their domi-

nant hand. The controller was not depicted within the VR.

Participants were standing during the whole experiment.

Participants were then asked to physically walk onto

the marking of a cross on the planet and turn until they

were facing an orientation dot visible in front of them. A

5-point calibration was then performed. Afterwards, they

could start the practice block via a press on the side button

of the controller. Then, they were asked if they had any

questions, and if none remained, the five blocks were

started and run in the afore described randomized manner.

Afterwards, they filled out surveys assessing Simulator

Sickness and technical issues. Upon completion, the par-

ticipants were thanked, compensated with student credit

hours if applicable, and snacks if not, and were then given

the option to ask questions about the experiment and to re-

ceive a detailed description of the experiments’ purpose.

Analysis

The gaze data was obtained using the SMI Unity plug-

in. The 3D POR was calculated using an adaptation of the

Math3d class (Kolkmeier, 2013). The product-moment

correlation was calculated using the Math.NET Numeric

library (Ruegg et al., 2018). The algorithms were imple-

mented within the Unity development environment, using

C#. All further analyses for experiment 1 were done of-

fline.

The time window and starting point for the algorithms

were specified based on previous literature. For the corre-

lation-based algorithm recommendations ranged from 0.5s

with ~20 data points (Vidal et al., 2013) to 1s with ~30

data points (Esteves et al., 2015). Our goal was to achieve

an optimal spot between a high number of data points, in-

creasing the detection rate, and a short time frame, lower-

ing reaction times for later online use (Esteves et al., 2015,

Khamis et al. 2018). We chose to include 40 samples into

the testing window. With an average fps of 60Hz as meas-

ured in a pre-test, this resulted in a duration of 0.67s. The

same time window was implemented for the difference-

based algorithm.

Thus, analyses started 40 frames after the onset of

movement.

Calculation of the optimal threshold. The optimal

threshold (OT) for both algorithms was tested iteratively.

For the correlation-based algorithm, we iterated over

thresholds of correlation values between 0 and .95 in steps

of .05. For the difference-based algorithms, we iterated

over thresholds between .20 and .01 in increments of .01,

resulting in 20 data sets with linearly increasing thresholds

for each algorithm.

Efficiency, TP, FP and ND were each averaged over all

trials for the respective algorithms. The residues for the

data sets with the threshold resulting in the best perfor-

mance were tested for normal distribution via QQ-Plots

and a subsequent Shapiro-Wilk Test and then further ana-

lyzed via an Analysis of Variance.

To gain further insights into the non-significant results

we performed a sensitivity analysis with G*Power.

For directional analysis, the DRs of each of the 26 lin-

early moving objects were calculated for the near and far

condition. Afterwards the DRs of the objects moving in

one of the six base directions (left, right, up, down, near-

ing, distancing (far)) were averaged. Thus, per base direc-

tion the DRs of nine objects were averaged.

Comparison of the algorithms. We employed a sign

test to compare the performance of the two algorithms

(Bölte, 1994). This non-parametric test allows for a com-

parison on trial-level. Therefore, both data sets were com-

bined, depicting the results of both algorithms (TP, FP,

ND). All entries with equal decisions were omitted, leav-

ing only the rows with diverging entries. For the remaining

trials, a “+” or “-“ was assigned, depending on a correct or

Journal of Eye Movement Research Freytag, S.-C., Zechner, R., & Kamps, M. (2023)

15(3):9 A systematic performance comparison of two Smooth-Pursuit Algorithms in VR

incorrect decision made by the respective algorithm. The

sum of the resulting “+”s was calculated for each algo-

rithm and a Binomial test was performed, testing if the

likelihood of a “+” appearing was distinct from the likeli-

hood or random appearance (p = .5).

Results

Hypotheses. The ANOVA yielded a confirmation of

the main effect for movement type for the correlation-

based algorithm (F(1,11) = 24.27, p < .001, η² = .29), but

not for the difference-based one (F(1,11) = 0.98, p = .344,

η² = .01), confirming H1.1 and refuting H1.2. A main ef-

fect for object distance was discovered for both the corre-

lation-based algorithm (F(1,11) = 190.77, p < .001, η² =

.75) and the difference-based one (F(1,11) = 148.20, p <

.001, η² = .42), confirming hypotheses 2.1 and 2.2.

Interaction effects for distances x movement types

were found for both the correlation-based algorithm

(F(1,11) = 9.00, p = .012, η² = .22) and the difference-

based one (F(1,11) = 5.94, p < .033, η² = .01), see Figure

5, confirming H3.1 and H3.2.

Figure 5. Interaction Plots for the correlation-based (left) and

difference-based (right) algorithms for close and far distances, in

interaction with the movement type (circular or linear).

As the main effect concerning movement type for the

difference-based algorithm was not significant we

performed a post-hoc sensitivity analysis. With the sample

size of N = 12, the test would have revealed effects of at

least η² = 0.09 with a probability of .90. Thus, for

hypothesis H1.2, we assumed that there was either a very

small effect or no effect.

Optimal threshold. The correlation-based algorithm

presented its’ best detection rate (M = .31, SD = .46) at a

threshold interval of between .65 to .80 (M = .28, SD = .45)

with a rapid decrease of detections for higher thresholds.

The rate of false detections has a maximum at a threshold

of .69 (SD = .46) and decreases for thresholds ≥ .75 (M=

.65, SD = .48). The ND rate remains M = 0 (SD = 0) for

lowest thresholds and remains low for thresholds between

.45 to .65 (M < .01, SD <.10). At a threshold of .70, the

ND rate begins to increase (M = .02, SD = .14). The Effi-

ciency follows the curve for the detection rate up to the

threshold of .70 where first NDs take place. We selected

an optimal threshold of .75 for the correlation-based algo-

rithm which equals an Efficiency value of .31. After that

point, the FP rate begins to decrease while the detection

rate remains close to its’ maximum. The average detection

time from the beginning of the movement is 1.18s (SD =

.69) or M = 70 frames (SD = .41), see Figure 6 (top).

Figure 6. Performance graphs for the correlation-based (top) and

difference-based algorithm (bottom), based on detection rates,

false-positives, non-detections and efficiency averaged over all

trials. The chosen threshold level (OT) is indicated by the

respective vertical line.

The difference-based algorithm shows a pattern similar

to the correlation-based algorithm. The detection rate in-

creases from the initial .20 up to a threshold of .10 (M =

.50, SD = .50), followed by a decrease. The rate of false

detections sinks continuously while the ND rate remains

less than or equal .05 until it increases rapidly for thresh-

olds smaller than .08 (M = .08, SD = .03). The Efficiency

curve is similar to the detection rate for thresholds larger

than .10, but further increases while reaching a maximum

at the most restrictive threshold of .02 (M = .74). A

Near Far Near Far

Distance

0.2 .4 .6 .8 1

Circular

Linear

Distance

Circular

Linear

Correlation-based Difference-based

Threshold (for averaged correlation coefficients)

Threshold (for averaged difference coefficients)

Rate

≥ 0 ≥ .2 ≥ .4 ≥ .6 ≥ .8

≤ .20 ≤ .16 ≤ .12 ≤ .08 ≤ .04

Eff.

NDRFPRDR

Rate

0.2 .4 .6 .8 1

Difference-based

Correlation-based

Eff.

NDRFPRDR

≥ .75

≤ .07

Journal of Eye Movement Research Freytag, S.-C., Zechner, R., & Kamps, M. (2023)

15(3):9 A systematic performance comparison of two Smooth-Pursuit Algorithms in VR

threshold of .07 was selected as optimal, as it resulted in,

all parameters combined, the best overall performance (see

Figure 6, bottom).

Therefore, the thresholds of .75 for the correlation-

based algorithm and of .07 for the difference-based algo-

rithm were used for all following comparisons.

Comparison of the Algorithms. Averaged over all tri-

als, the difference-based algorithm achieved a higher DR

compared to the correlation-based algorithm (M = .49, SD

= .49 vs. M = .29, SD = .49). The Binomial test revealed a

significantly higher DR of the difference-based algorithm

compared to the correlation based one (p <0.001, with

1124 of 1516 trials showing a higher DR for the differ-

ence-based algorithm).

Directional movements of the objects. The perfor-

mance of the correlation-based algorithm showed the low-

est averaged DR for objects that performed a linear move-

ment along the vector f (“far”) away from the observer in

both the near (M = .21, SD = .08) and the far condition (M

= .10, SD = .08). Objects with a linear movement along the

vector n (“near”), approaching the observer, yielded the

highest averaged DR (near M = .47, SD = .10, far M = .28,

SD = .09). The difference-based algorithm showed the

highest averaged DR for objects with a linear movement

towards the observer (vector n) as well, with considerably

higher averaged DRs (near M = .80, SD = .07, far M = .74,

SD = .20, see Figure 7).

Figure 7. Detection performance of the two algorithms for linear

movements averaged over the six basic directions towards the

end point of the movement vector (left (l), right (r), top (t),

bottom (b), near (n), far (f)).

RT-Task. On average, 138.46 (SD = 8.24) of 150

achievable points per condition were scored by the partic-

ipants. No subject achieved less than 116 points (77%) in

any condition. With 50 reaction stimuli per condition,

2400 reaction stimuli occurred across all trials, with 2385

of them (99%) being responded to by the participant within

2.5 s. The average reaction time was 0.44 s (SD = 0.16).

Discussion of experiment 1

As predicted, the correlation-based algorithm showed

a better performance for circular movements compared to

linear movement patterns (H 1.1). This difference was not

established for the difference-based algorithm, which

showed no significant difference between both movement

types, with a sensitivity test suggesting either no or a very

small effect (H 1.2). This ties into the overall higher DRs

of the difference-based algorithm that were obtained

across all trials. The exploratory analysis of the influence

of directional movements suggests a higher robustness to-

wards linear types of movement for the difference-based

algorithm. Interestingly, the difference-based algorithm

performs highest for movements along the z-axis, i.e., to-

wards or away from the observer, in which the rate of

change would be lowest.

Overall, both algorithms performed better if objects

were shown within a close range compared to displaying

the objects in larger distances, independent of movement

patterns (H2.1 and H2.2). Movements virtually closer to

the eyes of the observer benefit from a lower estimation

error, which accumulates along the third axis. Further-

more, the further away the movement, the smaller the vis-

ual distance covered. Combined with additions of estima-

tion errors, inaccuracies increase. The confirmation of the

interaction effect between distance x movement type

(H3.1, H3.2) supports this assumption. The higher DRs in

closer distances would suggest adopting a design principle

in which it was recommended to set stimuli to be selected

via smooth pursuit within the near plane of the virtual en-

vironment. However, only one object was shown at all

times. While this was done to create ideal conditions for

sustained smooth pursuit movements, it also created an ar-

tificial setup which kept eye strain due to different visible

stimuli at minimum. One of the goals of the second exper-

iment therefore was to evaluate in a pre-study if the addi-

tion of further visible objects would have any adverse ef-

fects on the observer.

The high rates for successful reactions of participants

during the reaction task indicate sustained attention to-

wards the object. Together with the aforementioned dis-

play of one singular visible stimulus (with the other 25

Li nea r / Nea r

Li nea r / Fa r

Correlation-based Difference-based

Direction Direction

l t b nr

Li nea r / Nea r

Li nea r / Fa r

0.25 .50 .75 1

Journal of Eye Movement Research Freytag, S.-C., Zechner, R., & Kamps, M. (2023)

15(3):9 A systematic performance comparison of two Smooth-Pursuit Algorithms in VR

stimuli being represented mathematically), ideal condi-

tions for testing the algorithms were created. The optimal

threshold level for both algorithms were therefore selected

within a setup that allowed to test the optimum perfor-

mance. How would the achieved results hold up under eco-

logically more valid conditions? To answer this was the

scope of experiment 2.

Experiment 2

Having identified an optimal threshold level for both

algorithms under artificially optimal selection conditions,

we could now test the performance under a systematically

varying number of visible objects for the participant to

choose from. Due to the interaction effects of distance and

movement types found in experiment 1, experiment 2 in-

cluded these parameters, too with the aim to a) test perfor-

mance levels of both algorithms under a selection of typi-

cal setups that might be present in VR applications using

smooth-pursuit object selection and b) ideally allow for

recommendations of the maximum numbers of objects,

movement types and distances, including performance

data as well as user feedback.

Additionally, based on the findings of experiment 1,

we assume that the optimal threshold level for detections

by each algorithm varies, depending on the interaction of

distance, movement pattern and, as introduced in this sec-

tion, the number of objects present. We aimed to derive a

formula that could indicate the optimal threshold for each

algorithm under these varying conditions, taking into ac-

count the rate of non-detections, detections, and false pos-

itives.

Adjustments to the experimental setting

The main difference to experiment 1 is the presence of

non-target objects: objects in varying quantity that moved

within the same plane of distance and movement pattern

as the target object. These non-targets kept the shape of the

spherical shape ships but were colored in green and lacked

the target chicken (see Figure 8).

Figure 8. Left: target object; Middle: clouded target object while

reaction time task; Right: non-target.

Number of visible objects. In order to determine the

number of non-targets to be tested, the logfiles of experi-

ment I were re-evaluated. Subsets of the original 26 objects

were created, iteratively reducing the number of objects

taken into account for the gaze-object-comparison by the

algorithms. DRs were calculated for these subsets to deter-

mine the performance of the two algorithms for different

amounts of objects. Based on these re-evaluations, the

number of distractors for experiment II was set to an inter-

val from two to eleven, resulting in a maximum object

count of twelve, including the target object. An object

count of less than three was likely to generate ceiling ef-

fects, reducing the informative value of these conditions.

More than twelve objects displayed at the same time would

create a substantial amount of overlap between objects in

the start position or during the object movement within this

setup and were therefore excluded.

Table 2. Overview of object configurations and their respective

spawn points (circular) or target point of movement (linear).

Object config.

spawn point of objects (circular) / end-

point of movement vector (linear)

3 A

lnt, rnt, f

3 B

lnb, t, rfb

4 A

lt, lb, rb, rt

4 B

lnb, rnt, lft, rfb

5 A

l, b, r, t, f

5 B

lnb, rnt, lft, rfb, f

lnb, l, b, r, t, rft

lnb, rnt, l, b, r, lft, rfb

8 A

l, b, r, t, lft, lfb, rfb, rft

8 B

lnt, lnb, rnb, rnt, lf, fb, rf, ft

9 A

lt, l, lb, b, rb, r, rt, t, f

9 B

rnb, rn, rnt, lt, l, lb, ft, f, rb

10 A

lnt, lnb, rnb, rnt, t, b, lf, fb, rf, ft

10 B

nb, nt, lt, l, lb, rb, r, rt, ft, fb

rnt, rn, rnb, lt, l, lb, b, t, rfb, rft, f

12 A

lnt, lnb, rnb, rnt, l, b, r, t, lft, lfb, rfb, rft

12 B

ln, nb, rn, nt, lt, lb, rb, rt, lf, fb, rf, ft

Note: abbreviations: left (l), right (r), near (n), far (f), top (t), bot-

tom (b). See Figure 4 for the spatial distributions of points.

Journal of Eye Movement Research Freytag, S.-C., Zechner, R., & Kamps, M. (2023)

15(3):9 A systematic performance comparison of two Smooth-Pursuit Algorithms in VR

The spatial distribution of the non-targets was created

by omitting objects from the original invisible, but simu-

lated 26 objects. The remaining configurations were dis-

tributed evenly across the volume extending in front of the

participant (see Figure 4). In total, 17 different object con-

figurations were tested, including ten different object

counts (3-12), of which seven were tested in different ar-

rangements (A/B, see Table 2).

Distances. The distance of the “near” condition was

adjusted to 0.8m (before: 0.4m) because pre-tests with the

adapted number of visible objects revealed a high eye-

strain for the participants, due to having various objects in

their immediate field of view in such a close proximity.

This adjustment limits the maximum vergence of the eyes

and with that reduces the range of additional information

added to the algorithm on the third dimension, but was de-

cided to be necessary to ensure optimal and strain-free

conditions for the participants. Due to the distance of the

“far” condition having been set to 1.4m in experiment 1 in

order to test the maximum viable distance, this distance

was not increased further. With the radius of the sphere on

which the spawn points were distributed remaining at

0.2m, this results in effective spawn distances of 0.6-1.0m

(centered at 0.8m) in the near condition and 1.2m to 1.6m

(centered at 1.4m) in the far condition. Further implica-

tions are discussed in the overall discussion.

Task. The feedback from pre-test participants led to

the adjustment of the point-system in the reaction-time

task. To prevent demotivating the participants by a low

score at the end of each experimental block, wrong reac-

tions only led to a point reduction of -1 in experiment 2.

Object visibility duration. The objects were shown

immobile for 2 seconds after spawning before starting their

movement, which continued for 4 seconds. The time of

visibility in the initial resting phase was prolonged to 2

seconds (before: 1 second) to allow enough time for iden-

tification of the target. Hence, the overall duration of the

experiment slightly increased.

Starting position of objects in linear conditions.

While the target object was rendered directly in the center

of the visual field in experiment 1, the presence of various

objects in experiment 2 required a slight adjustment of the

start position to avoid overlap. The objects started slightly

set off from one another, each slightly moved in the re-

spective direction of the following movement.

Hypotheses

Based on the previous results, we derived the hypothe-

ses for experiment 2 as follows:

Movement pattern

H1.1 The correlation-based algorithm performs, averaged

over all distances, better on circular movement pat-

terns compared to linear movement paths.

H1.2 The difference-based algorithm performs, averaged

over all distances, equally for circular movement pat-

terns and linear movement paths.

Distance

H2.1: The correlation-based algorithm performs, aver-

aged over linear and circular movement patterns, bet-

ter in the near condition compared to the far condi-

tion.

H2.2: The difference-based algorithm performs, averaged

over linear and circular movement patterns, better in

the near condition compared to the far condition.

Number of non-targets

H3.1: The correlation-based algorithm performs better

the fewer objects are present.

H3.2: The difference-based algorithm performs better the

fewer objects are present.

Comparison of algorithms

H4: The difference-based algorithm performs, on aver-

age, better than the correlation-based algorithm.

Further research questions:

Optimal thresholds. We aimed to derive a formula for the

OT, integrating the different performance parameters (DR,

FP, ND). Selection time: As the aim of this study is to fa-

cilitate the application of online smooth-pursuit-based se-

lection in 3D VR, the reaction times of both algorithms

were recorded. No hypotheses were stated regarding a pos-

sible impact of movement pattern, distance and object

count on the selection time of both algorithms. Instead, the

reaction times across all conditions were tested explora-

tively. To allow for design recommendations from the us-

ers’ point of view as well, the preference of participants

for movement types as well as object distance and numbers

were assessed.

Journal of Eye Movement Research Freytag, S.-C., Zechner, R., & Kamps, M. (2023)

15(3):9 A systematic performance comparison of two Smooth-Pursuit Algorithms in VR

Experiment plan

The experiment consisted of one practice block and

four randomized experimental blocks. As in experiment I,,

one experimental block represented one unique combina-

tion of object distance (near/far) and movement pattern

(linear/circular). In each of the experimental blocks, the

number of displayed objects progressively increased from

three to twelve. Since some of the object numbers were

tested in two different arrangements, the resulting 17 ob-

jects variants (see Table 2) were completed one after the

other. Each of these object variants were repeated three

times in a row, with an object selected by random as the

target object. One trial consisted of a 2 second phase,

where the objects were presented in the center of the visual

field, followed by a 4 second phase of object movement.

In total, 51 trials constituted one experimental block,

resulting in 204 trials in total. Each block took 5.1 minutes

to complete.

Participants. N = 30 participants (15 ♀, 14 ♂, 1 di-

verse) aged between 20 to 35 years (M = 26.6, SD = 3.7)

took part in the second experiment. 13 reported corrected

to normal-vision, with six individuals using contact lenses,

five glasses and two without corrective measures. The test

procedure was identical to experiment I.

Analysis

The dependent variable mainly used for the analysis

was the detection rate DR, which is defined as the propor-

tion of true positive detections from all trials (see Formula

4). The analysis process was equivalent to experiment 1

regarding 3D POR calculation and the moving window of

40 frames for calculation.

An ANOVA was performed to test the impact of vary-

ing object numbers on the DR under the four test condi-

tions (near/linear, near/circular, far/linear and far/circular)

for both algorithms.

For each object configuration, an optimal threshold

was determined by using the same method as described in

the previous experiment. For the correlation-based algo-

rithm, we iterated over thresholds between 0 and .95 in in-

crements of .05. For the difference-based algorithm, values

between .20 and .01 were tested in steps of .01.

The configuration yielding the optimal threshold for

the respective object variant was further analyzed. In order

to perform an Analysis of Variance to test H3.1, the data

was tested for normal distribution of the residuals with a

Shapiro-Wilk-Test and a Mauchly-Test for sphericity. Due

to the amount of data, exemplary object counts (with 4, 6,

8, 10 and 12 objects) were tested for their specific main

effects.

Since the data of some of the tested object configura-

tions violated the normal-distribution of residuals, addi-

tional QQ-Plots were used. Based on Lix, Keselman &

Keselman (1996), who refer to the ANOVA as robust re-

garding violations of the normal distribution of residuals

and on Villasenor et al. (2009, p. 1874) who say, that the

Shapiro-Wilk-Test is “too strict”, a two factor ANOVA

was chosen as test measure, although not all requirements

were met.

To test H4, the selected object counts of 4, 6, 8, 10 and

12 objects were each individually tested for the differences

in detection rates between the correlation-based and differ-

ence-based algorithms. The requirements to perform a t-

test include normal distribution of the difference variable.

Since this was not given and the t-test is more vulnerable

to undesired impacts, the non-parametric test alternative

Wilcoxon-sign rank test was performed.

We investigated if an ideal threshold could be deter-

mined for each object configuration. We therefore defined

a formula for Efficiency_1 based on their DR, FP and ND.

In terms of application, ND are preferred over FP because

the trial can be repeated while corrective measures needed

to be taken for a false selection. More FP are likely to have

a worsening impact on user satisfaction. The formula used

is:

(6)

𝐸𝑓𝑓𝑖𝑐𝑖𝑒𝑛𝑐𝑦_1=1−

67-43 −

45678

45678-56

67-43

represents the proportion of correctly detected

objects (DR) out of all the trials where an object exceeds

the pre-defined threshold – in the following, this term will

be referred to as “effectiveness”. In the second part of the

term, the ND rate is additionally taken into account, calcu-

lating the proportion of the “effectiveness” out of all trials.

The absolute value of the “effectiveness” was used and

subtracted from 1.

This formula reaches its’ maximum value when the ND

exceeds the FP, favoring repeats over false selections. The

formula therefore is able to determine for which range of

threshold values the FP are decreasing, which is desirable.

Journal of Eye Movement Research Freytag, S.-C., Zechner, R., & Kamps, M. (2023)

15(3):9 A systematic performance comparison of two Smooth-Pursuit Algorithms in VR

Efficiency_2 is also based on what we previously de-

fined as “effectiveness” (

67-43

) and the ND, but focuses

on the rate of change from one threshold value to the next.

(7)

𝐸𝑓𝑓𝑖𝑐𝑖𝑒𝑛𝑐𝑦*2=*

*67

67-4389$:)9;<&.=. −

*𝑁𝐷89$:)9;<&.=.

−

;

*67

67-4389$:)9;<&.=>?. −

*𝑁𝐷89$:)9;<&.=>?.

With this approach we investigated if a rapid increase

in ND and decrease in DR emerged, indicating a specific

threshold as ideal, as represented by a high slope of the

graph for Efficiency_2.

Results

Movement pattern and distance. On average, circu-

lar object movements resulted in a trend towards a higher

DR for both algorithms (H1.1/1.2), but the main effect

only surpassed the significance threshold for 4 and 6 ob-

jects for the correlation-based algorithm (p = .003,

𝜂@

.06

and p = .001,

𝜂@

A=*.13

) and for 4 objects for the dif-

ference-based algorithm (p = .043,

𝜂@

=.03). We hypothe-

sized an effect for all object counts for the correlation-

based algorithm but none for the difference-based algo-

rithm. The general tendency suggests that the difference-

based algorithms had higher DRs for circular movements,

but for both algorithms the differences in DRs were lower

than in experiment 1.

The impact of distance was found to be much smaller

than in experiment 1. Only for the trials with all 12 objects

visible, both algorithms performed better in the “near”-

condition (corr.-b. A. p = .004,

𝜂@

A=.08

, diff.-b. A. p =

.021,

𝜂@

A=*.04

), which is compliant with H2.1 and H2.2.

Additionally, the correlation-based algorithm detected

more objects in the near-conditions in the variants with 8

objects (p = .027,

𝜂@

=.03).

Object count. The ANOVA yielded a confirmation of

H3.1 and H3.2, regarding the main effect of object count

for both the correlation-based (p < .001,

𝜂@

= .61) and the

difference-based algorithm (p < .001,

𝜂@

A=*.27

). Addi-

tionally, an interaction effect between the object counts

and the test condition was found to be significant for the

correlation-based algorithm (p = .007), but only with a

comparably low effect of

𝜂@

= .05.

Figure 9. Detection rates of both algorithms for movement

patterns (linear, circular) distance (near, far) and number of

visible objects.

Comparison of algorithms. The difference-based al-

gorithm outperformed the correlation-based algorithm in

nearly all of the tested trials, in alignment with H4 (see

Figure 10). Four out of the five selected object counts for

further investigation (4, 6, 8, 10 and 12 objects) resulted in

higher detection rates for the difference-based algorithm (4

objects: p= .418, r= .02; 6 objects: p= <.001, r= .48; 8 ob-

jects: p= <.001, r =.41; 10 objects: p= <.001, r= .58; 12

objects: p= <.001, r = .35).

Figure 10. Detection rates of both algorithms for all numbers of

simultaneously visible objects, averaged over all experimental

conditions.

Optimal threshold. The difference-based algorithm

produced a lower FP rate than the correlation-based one.

Therefore, the maximum value of Efficiency_1 is achieved

Number of objects

354 6 8 10 127911

0.2 .4 .6 .8 1

Difference-based

Correlation-based

D (far - circular)

C (far - linear)

B (near - circular)

A (near - linear)

D (far - circular)

C (far - linear)

B (near - circular)

A (near - linear)

Number of objects

354 6 8 10 127911

0.2 .4 .6 .8 1

Difference-based

Correlation-based

Journal of Eye Movement Research Freytag, S.-C., Zechner, R., & Kamps, M. (2023)

15(3):9 A systematic performance comparison of two Smooth-Pursuit Algorithms in VR

at a comparatively low threshold value (see Table S1; e. g.

.13 for object variants with 3 objects; .1 for object variants

with 6 or 9 objects; .06 for object variants with 12 objects).

For the correlation-based algorithm, which has on average

a higher FP rate, the maximum of Efficiency_1 is achieved

for higher thresholds, therefore leading to more conserva-

tive selections. Using the Efficiency_2 formula, optimal

thresholds for most numbers of visible objects for the cor-

relation-based algorithm were identifiable due to the im-

pact of increasing DR and decreasing ND. For the differ-

ence-based algorithm, Efficiency_2 painted a less clear

picture, as NDs were already low.

Table 3: Overview of durations for and detections for both

algorithms, averaged, and for exemplary numbers of objects.

objects

correlation-based

difference-based

select.

detection

select.

detection

M (all)

1.23

1.18

1.53

1.03

0.99

1.12

1.10

1.05

0.98

1.26

1.33

1.34

1.30

1.62

1.13

1.05

1.54

1.61

Note: Duration is provided in seconds. Selections are defined as

true positives and false positives. Detections are defined as true

positives only.

Detection time. Overall, the correlation-based algo-

rithm performed selections (including true and false posi-

tives) after an average of 1.23s, averaged over all condi-

tions (see Table 3). If only detections (true positives) were

considered, the duration shortened to 1.18s. In contrast, the

difference-based algorithm needed 1.53s for selections as

well as true positive detections and showed an overall

higher time for both selections and detections.

Subjective results. 17 out of 26 participants indicated,

across all conditions for movement type and distance, that

on average, seven objects were the most comfortable to in-

teract with (M = 7.18, SD= 1.67, “What number of objects

was the most comfortable for you?”). The remaining nine

participants, were comfortable to interact with any number

of objects between three and 12. Asked which number of

objects were too many to complete the primary task unhin-

dered, the majority (18) of participants indicated that there

were no hindrance for the maximum number of objects

shown simultaneously (12). Participants voiced that the

clear visual distinction between target and non-targets

helped in completing the task. Eight participants felt dis-

rupted by the increasing number of objects at an average

threshold of M = 9.86 (SD = 1.55) objects.

No clear preference for either linear (favored by 11 par-

ticipants) or circular movement types (favored by 10)

emerged. Five participants had no preference at all. Asked

why they preferred their chosen type of movement, the rea-

sons for linear movement were stated, with number of par-

ticipants in braces, as “high predictability of continuation

of the movement” (4), “less coverage between objects” (4),

and “less straining for the eyes” (1). For circular move-

ment, the reasons were “less eye movement needed/less

visual angle covered” (5), “aesthetics of the movement

pattern” (3), “better resolution of the objects on the HMD”

(2) and “ease of interaction” (1).

A preference for the far display condition (15 partici-

pants) over the near display of objects (6 participants)

emerged. Five participants indicated no preference. Rea-

sons for favoring the far distance (1.4m) were “less head

movement needed” (6), “better overview” (5) and “less

eye movement needed/smaller visual angle covered by the

objects” (4), but also “a better resolution” (1). The near

condition was favored due to “a better resolution” (3), for

“no particular reason” (2) or because of the “bigger object

size” (1).

Discussion

Performance. Across both experiments, the differ-

ence-based algorithm provided a better performance com-

pared to the correlation-based one, if performance is oper-

ationalized by high detection rates. However, as experi-

ment 2 has shown, the higher reliability comes at a cost, as

both overall selection times and detection times were

slower, compared to the correlation-based algorithm. The

latter, on the other hand, provides faster interaction for the

user. The impact of different movement patterns was

higher for the correlation-based algorithm as well, with

circular types of movement increasing DRs for this algo-

rithm, but not for the difference-based algorithm which

performed more homogenously across both conditions.

Distances. While experiment 1 showed a clear ad-

vantage in detection for close distances (0.4m) for both al-

gorithms, experiment 2 could not establish a significant

difference in performance between both conditions. This

might have been due to the adaptation of distance in the

near condition, setting the spawn point to 0.8m. This was

required by the results of pre-tests after introducing addi-

tional visible objects. It is very likely that the decrease in

Journal of Eye Movement Research Freytag, S.-C., Zechner, R., & Kamps, M. (2023)

15(3):9 A systematic performance comparison of two Smooth-Pursuit Algorithms in VR

distance between both near and far condition reduced dif-

ferences in detection rates, as the original distance between

both conditions was nearly halved. Furthermore, both dis-

tances were indicated by the center of a sphere on the sur-

face of which objects could spawn, adding a radius of

0.2m., resulting in a distance of only 0.4m between spawn

points on the back side of the sphere in the near condition

(centered at 0.8m) and spawn points on the front side of

the sphere (1.2m, centered at 1.4m) in the far condition.

However, the rationale behind the exact location of the

spawn center in the far condition was to test the limits of

the algorithm and the usefulness of including the third axis

into calculations close to a point where parallelization of

the eyes would hinder depth detection. While trends to-

wards better detection in the near condition were still de-

tectable, experiment 2 showed that both algorithms work

reasonably well within both distances.

User Experience. The adaptation of spawn distances

took place because the introduction of additional objects in

close proximity caused eye-strain that did not occur while

only one object was present. We assume that the increased

amount of movement in a comparatively large portion of

the visual field had contributed to the discomfort. After ex-

periment 2, individuals who preferred the far condition in-

dicated that they liked not having to perform large eye

movements, further supporting that assumption. This ties

into a limitation of the usefulness of the third spatial axis

for any kind of gaze analysis compared to the other axes:

not all distances are equally feasible, depending not only

on physical and technical limitations but also on the num-

ber of stimuli present in the visual field. Drewes et al.

(2022) have demonstrated that user preferences corre-

sponded to optimal detection rates in 2D smooth pursuit

tasks with constant target velocities. We therefore assume

that, by having adapted the speed to the users' preferences

in our prestudy, the chosen speed parameters would ap-

proach optimal settings to investigate the algorithms per-

formances. In 3D, the perceived speed of the targets might

vary due to targets moving away or towards the user. We

encourage further researching the relationship between

user preference and detection rates specifically when in-

cluding the third dimension.

Number of visible objects. While experiment 1 inves-

tigated the optimum performance of both algorithms under

ideal conditions, the introduction of visible objects al-

lowed to test both algorithms in an ecologically more valid

setup. Hypotheses H3.1 and H3.2 of experiment 2 were

confirmed, showing that smaller numbers of objects in-

crease the performance of both algorithms. The addition of

feedback from participants allow to balance affordances of

the algorithm with user preferences. While not all partici-

pants showed a preference for specific object numbers, the

majority did and indicated that seven objects were prefer-

able. Additionally, we found that for object counts ≤ 6 the

FP rates of the difference-based algorithm were lower than

the ND rates. This is desirable, as trials without a detection

can be repeated, while trials with a false detection can lead

to a worse user experience and increase the overall inter-

action time. We therefore recommend limiting the number

of simultaneously shown objects to choose from via

smooth-pursuit to 6, and suggest to not surpass a number

of 9 objects at a time, as this was indicated as being per-

ceived as too much by almost a third of participants.

Number of participants. For this study, two experi-

ments were conducted. The first experiment was to test

both algorithms under ideal conditions with only one target

being shown to a comparatively low number of twelve par-

ticipants, but with a high number of trials. To account for

this number, a sensitivity analysis was performed for the

non-significant results, revealing that effects of at least η²

= 0.09 would have been revealed with a probability of .90.

The second experiment introduced an ecologically valid

variation in the number of visible objects as described

above and was therefore considered as much closer to real-

world applications, which is why we allocated a compara-

bly higher number of 30 participants to this experiment.

Calibration. One of the great advantages of smooth-

pursuit based interaction is the option to be used for spon-

taneous interaction without (Vidal et al., 2013) or only

minimal (Lutz et al., 2015) calibration. While we aimed

for ecological validity in the second study, we still in-

cluded a calibration for this experiment to control for po-

tential sources of error. The additional calibration time was

feasible due to the experimental conditions, but might pose

a hindrance for applications. We suggest to compare using

different calibration procedures, e.g., smooth-pursuit

based (e.g. Pfeuffer et al, 2013, Blignaut, 2017) or regres-

sion-based (Drewes et al., 2019b) and calibration-free per-

formances to provide further references for application.

Optimal threshold. The idea to introduce a formula to

indicate the optimal threshold provided helpful support in

threshold selection, but ultimately needs more fine tuning.

For both algorithms, the Efficiency_1 tends to favor more

conservative thresholds when a higher number of objects

Journal of Eye Movement Research Freytag, S.-C., Zechner, R., & Kamps, M. (2023)

15(3):9 A systematic performance comparison of two Smooth-Pursuit Algorithms in VR

is shown (> 6 objects). This inherently results from trying

to prevent false positives, of which the likelihood to occur

increases with each additional distractor, as the distance to

other selectable objects is reduced. In most cases, this con-

servative threshold results in DRs close to the maximum

of the algorithm. However, we suggest an adjustment for

object counts larger than six, as detection loss might oth-

erwise occur.

The approach of calculating the optimal threshold

seems promising, but not perfect. For some object variants,

Efficiency_2 failed to suggest a clear threshold as a steady

slope emerged, with no significant maximum. This oc-

curred more often for the difference-based algorithm than

for the correlation-based algorithm. As the difference-

based algorithm was generally more reliable than the cor-

relation-based algorithm, the lower variance of DRs and

NDs led in turn to a lower change in Efficiency_2. For our

analyses, we used a hybrid approach, taking into consider-

ation the thresholds suggested by Efficiency_1 (for the dif-

ference-based algorithm) and Efficiency_2 (for the corre-

lation-based algorithm) and a visual inspection of the de-

velopment of DR to determine individual thresholds for

each of the tested object configurations. The aim was to

choose a threshold which would produce a high DR and

prefers ND over FP. However, this threshold was selected

manually. A further development would be the further re-

finement of the developed formulae, and in a second step,

with a previous calibration, the integration into an online

algorithm.

However, the derivation of a formula that supported the

identification of the ideal threshold was an exploratory en-

deavor with the ultimate goal to facilitate threshold selec-

tion. The optimal thresholds for both tested algorithms

were still selected manually upon inspection of the result-

ing values. We hope that both the results of experiment 1

and experiment 2 can contribute to the growing body of

references for best-practices in gaze interaction in 3D Vir-

tual Reality.

Conclusion

Our study systematically compared the effects of both

distance and number of objects in a smooth-pursuit selec-

tion task in Virtual Reality. Overall, performance was

higher for the difference-based algorithm, suggesting that

tasks relying on high reliability would benefit from the

slightly higher time needed. The 3D difference-based al-

gorithm also showed a higher robustness across all varia-

tions regarding object size and trajectory. Seeing that the

influence of distance and therefore benefit of adding the

third axis to the algorithms was mostly notable in very

close proximity (0.4m). With close distances being advan-

tageous for 3D algorithms, there is a trade-off between

high detection rates user experience, as too many visible

objects in close distances create discomfort for the user, as

seen in the need for adaptations. Hence, we recommend to

use closer distances if visible objects are limited in num-

ber, and further distances elsewise, as our experiments

have shown that the decrease in detection performance

seems to be stable for distances larger than 0.8m. As

Khamis et al. (2018) have shown, target size did not influ-

ence performance. We therefore recommend to keep tar-

gets as small as convenient to reduce the amount of visual

flow in closer distances. However, while effects of larger

distances than 1.4m should be neligible due to the parallel-

ization of the eyes, further research to find the best possi-

ble range for depth tracking along the third axis is encour-

aged.

While our approach was based on a correlation-based

and a difference-based algorithm, future research could

further investigate the possible benefit of integrating the

third axis into currently novel algorithms such as the slope

method by Drewes et al. (2019).

Furthermore we investigated the idea of an ideal

threshold based on parameters of the environment. Future

approaches could be refined to include additional factors

either into design decisions or by adding to the threshold

algorithm. Drewes et al. (2022) demonstrated that optimal

detection rates correspond to the individual user's target

speed preference in 2D smooth pursuit tasks. The target

speed in our study was selected based on the overall sub-

jective preferences of users in a pre-study, but varied de-

pending on object trajectory. Therefore, for interaction set-

tings that require best possible detection rates, adapting to

the users preferred speed might be beneficial.

While our study involved a constant task to be per-

formed by the participants over all conditions, applications

would have different levels of engagement and demands

of the user. Kosch et al. (2018) have used the variation in

deviations within gaze trajectories during smooth pursuit

movements to successfully predict cognitive workload.

Aside from using the workload information for adaptive

experiences, the results of an online-classification could be

Journal of Eye Movement Research Freytag, S.-C., Zechner, R., & Kamps, M. (2023)

15(3):9 A systematic performance comparison of two Smooth-Pursuit Algorithms in VR

used to inform the detection threshold as well, thus possi-

bly further improving the algorithm performance.

Acknowledgements

We acknowledge support by the German Research

Foundation and the Open Access Publication Fund of TU

Berlin. We wish to thank the Chair of Human Machine

Systems at TU Berlin for providing the research facilities

and technical equipment.

References

Anderson, N. C., & Bischof, W. F. (2019). Eye and head

movements while looking at rotated scenes in VR.:

Session "Beyond the screen’s edge" at the 20th Euro-

pean Conference on Eye Movement Research

(ECEM) in Alicante, 19.8.2019. Journal of Eye Move-

ment Research, 12(7).

https://doi.org/10.16910/jemr.12.7.11

Blignaut, P. (2017). Using smooth pursuit calibration for

difficult-to-calibrate participants. Journal of Eye

Movement Research, 10(4).

https://doi.org/10.16910/jemr.10.4.1

Bölte, A. (1994). Modelle und Verfahren zur innerbe-

trieblichen Standortplanung. Heidelberg: Physica-

Verlag. https://doi.org/10.1007/978-3-642-51869-0

Breitenfellner, M., Jungwirth, F., & Ferscha, A. (2019).

Towards 3D smooth pursuit interaction. Adjunct Pro-

ceedings of the 2019 ACM International Joint Confer-

ence on Pervasive and Ubiquitous Computing and

Proceedings of the 2019 ACM International Sympo-

sium on Wearable Computers (pp. 619–623). Associ-

ation for Computing Machinery.

https://doi.org/10.1145/3341162.3348385

Clay, V., König, P., & König, S. U. (2019). Eye tracking

in virtual reality. Journal of Eye Movement Research,

12(1). https://doi.org/10.16910/jemr.12.1.3

Cymek, D. H., Venjakob, A. C., Ruff, S., Lutz, O. H.-M.,

Hofmann, S., & Roetting, M. (2014). Entering pin

codes by smooth pursuit eye movements. Journal of

Eye Movement Research, 7(4), Article 1.

https://doi.org/10.16910/jemr.7.4.1

Dörner, R., Broll, W., Grimm, P., & Jung, B. (2013). Vir-

tual und augmented reality (VR AR): Grundlagen und

Methoden der virtuellen und augmentierten Realität.

Berlin, Heidelberg: Springer Berlin Heidelberg.

https://doi.org/10.1007/978-3-642-28903-3

Drewes, H., Khamis, M., & Alt, F. (2019a). DialPlates:

Enabling Pursuits-based User Interfaces with Large

Target Numbers. Proceedings of the 18th Interna-

tional Conference on Mobile and Ubiquitous Multi-

media, Article 10. Association for Computing Ma-

chinery. https://doi.org/10.1145/3365610.3365626

Drewes, H., Pfeuffer, K., & Alt, F. (2019b). Time- and

space-efficient eye tracker calibration. Proceedings of

the 11th ACM Symposium on Eye Tracking Research

& Applications, Article 7. Association for Computing

Machinery. https://doi.org/10.1145/3314111.3319818

Drewes, H., Sakel, S., & Hussmann, H. (2022). User Per-

ception of Smooth Pursuit Target Speed. Proceedings

of the 2022 Symposium on Eye Tracking Research

and Applications, Article 64. Association for Compu-

ting Machinery.

https://doi.org/10.1145/3517031.3529234

Esteves, A., Velloso, E., Bulling, A., & Gellersen, H.

(2015). Orbits: Gaze interaction for smart watches us-

ing smooth pursuit eye movements. Proceedings of

the 28th ACM Symposium on User Interface Software

& Technology (pp. 457-466). Association for Compu-

ting Machinery.

https://doi.org/10.1145/2807442.2807499

Freytag, S.-C. (2020). Sweet Pursuit: User acceptance

and performance of a Smooth Pursuit controlled

candy dispensing machine in a public setting. In Sym-

posium on Eye Tracking Research and Applications,

Article 35. Association for Computing Machinery.

https://doi.org/10.1145/3379156.3391356

Gamesradar, T. B. (2022). The best VR headset in 2022:

All the latest devices compared. Retrieved April 27,

2022, from https://www.gamesradar.com/the-best-vr-

headset/

Huckauf, A., & Urbina, M. H. (2008). On object selection

in gaze controlled environments. Journal of Eye

Movement Research, 2(4).

https://doi.org/10.16910/jemr.2.4.4

Journal of Eye Movement Research Freytag, S.-C., Zechner, R., & Kamps, M. (2023)

15(3):9 A systematic performance comparison of two Smooth-Pursuit Algorithms in VR

Khamis, M., Alt, F., & Bulling, A. (2015). A field study

on spontaneous gaze-based interaction with a public

display using pursuits. Adjunct Proceedings of the

2015 ACM International Joint Conference on Perva-

sive and Ubiquitous Computing and Proceedings of

the 2015 ACM International Symposium on Wearable

Computers (pp. 863–872). Association for Computing

Machinery.

https://doi.org/10.1145/2800835.2804335

Khamis, M., Saltuk, O., Hang, A., Stolz, K., Bulling, A.,

& Alt, F. (2016). TextPursuits: Using text for pur-

suits-based interaction and calibration on public dis-

plays. Proceedings of the 2016 ACM International

Joint Conference on Pervasive and Ubiquitous Com-

puting (pp. 274–285). Association for Computing Ma-

chinery. https://doi.org/10.1145/2971648.2971679

Khamis, M., Oechsner, C., Alt, F., & Bulling, A. (2018).

VRpursuits: Interaction in virtual reality using smooth

pursuit eye movements. Proceedings of the 2018 In-

ternational Conference on Advanced Visual Inter-

faces, Article 18. Association for Computing Machin-

ery. https://doi.org/10.1145/3206505.3206522

Kickstarter.com (2012). Oculus Rift: Step into the game.

Retrieved April 27, 2022, from https://www.kick-

starter.com/projects/1523379957/oculus-rift-step-into-

the-game

Kolkmeier, J. (2013). Math3d.cs [Computer Software].

GitHub. Retrieved April 28, 2022, from

https://gist.github.com/jankolkmeier/8543156

Kosch, T., Hassib, M., Woźniak, P. W., Buschek, D., &

Alt, F. (2018). Your eyes tell: Leveraging smooth pur-

suit for assessing cognitive workload. Proceedings of

the 2018 CHI Conference on Human Factors in Com-

puting Systems, Article 436. Association for Compu-

ting Machinery.

https://doi.org/10.1145/3173574.3174010

Lappi, O. (2015). Eye Tracking in the Wild: the Good,

the Bad and the Ugly. Journal of Eye Movement Re-

search, 8(5). https://doi.org/10.16910/jemr.8.5.1

Lix, L. M., Keselman, J. C., & Keselman, H. J. (1996).

Consequences of assumption violations revisited: A

quantitative review of alternatives to the one-way

analysis of variance F test. Review of Educational

Research, 66(4), 579-619.

https://doi.org/10.3102/00346543066004579

Lutz, O. H.-M., Venjakob, A. C., & Ruff, S. (2015).

SMOOVS: Towards calibration-free text entry by

gaze using smooth pursuit movements. Journal of Eye

Movement Research, 8(1), Article 2.

https://doi.org/10.16910/jemr.8.1.2

Mewes, A., Hensen, B., Wacker, F., & Hansen, C.

(2017). Touchless interaction with software in inter-

ventional radiology and surgery: A systematic litera-

ture review. International Journal of Computer As-

sisted Radiology and Surgery, 12(2), 291-305.

https://doi.org/10.1007/s11548-016-1480-6

Neveu, P., Philippe, M., Priot, A.-E., Fuchs, P., &

Roumes, C. (2012). Vergence tracking: a tool to as-

sess oculomotor performance in stereoscopic displays.

Journal of Eye Movement Research, 5(2).

https://doi.org/10.16910/jemr.5.2.1

Pfeuffer, K., Vidal, M., Turner, J., Bulling, A., & Geller-

sen, H. (2013). Pursuit calibration: making gaze cali-

bration less tedious and more flexible. Proceedings of

the 26th Annual ACM Symposium on User Interface

Software and Technology (pp. 261-270). Association

for Computing Machinery.

https://doi.org/10.1145/2501988.2501998

Piumsomboon, T., Lee, G., Lindeman, R. W., & Billing-

hurst, M. (2017). Exploring natural eye-gaze-based

interaction for immersive virtual reality. Proceedings

of the 2017 IEEE Symposium on 3D User Interfaces

(pp. 36-39).

https://doi.org/10.1109/3DUI.2017.7893315

Ruegg, C., Cuda, M., & van Gael, J. (2018). Math.net nu-

merics (Version 4.3.0) [Computer Software].

https://numerics.mathdotnet.com/

Sibert, L. E., & Jacob, R. J. K. (2000). Evaluation of eye

gaze interaction. Proceedings of the ACM CHI 2000

Human Factors in Computing Systems Conference

(pp. 281-288). Association for Computing Machinery.

https://doi.org/10.1145/332040.332445

Unity (2017). Real-time 3D development platform & edi-

tor (Version 2017.3.0f3) [Computer Software]. Unity.

https://unity.com/products/unity-platform

Journal of Eye Movement Research Freytag, S.-C., Zechner, R., & Kamps, M. (2023)

15(3):9 A systematic performance comparison of two Smooth-Pursuit Algorithms in VR

"Vertex Cat" (2017). Farm animal set (Version 1.0)

[Unity Asset]. Unity Asset Store. https://as-

setstore.unity.com/packages/3d/farm-animals-set-

97945

Vidal, M., Bulling, A., & Gellersen, H. (2012). Detection

of smooth pursuits using eye movement shape fea-

tures. Proceedings of the Symposium on Eye Tracking

Research and Applications (pp. 177-180). Association

for Computing Machinery.

https://doi.org/10.1145/2168556.2168586

Vidal, M., Bulling, A., & Gellersen, H. (2013). Pursuits:

spontaneous interaction with displays based on

smooth pursuit eye movement and moving targets. In:

Proceedings of the 2013 ACM International joint

Conference on Pervasive and Ubiquitous Computing

(pp. 439-448). Association for Computing Machinery.

https://doi.org/10.1145/2493432.2493477

Villasenor Alva, J. A., & Estrada, E. G. (2009). A gener-

alization of Shapiro-Wilk's test for multivariate nor-

mality. Communications in Statistics - Theory and

Methods, 38(11), 1870-1883.

https://doi.org/10.1080/03610920802474465

VIVE (2022). VIVE Pro Eye overview. Retrieved April

27, 2022, from https://www.vive.com/us/prod-

uct/vive-pro-eye/overview/

Wende, K., Theunissen, L., & Missal, M. (2016). Antici-

pation of physical causality guides eye movements.

Journal of Eye Movement Research, 9(2).

https://doi.org/10.16910/jemr.9.2.1

Zeng, Z., Siebert, F. W., Venjakob, A. C., & Roetting, M.

(2020). Calibration-free gaze interfaces based on lin-

ear smooth pursuit. Journal of Eye Movement Re-

search, 13(1). https://doi.org/10.16910/jemr.13.1.3

Zehm, R. (2017). Stylized Earth (Version 1.0) [Unity As-

set]. Unity Asset Store. https://as-

setstore.unity.com/packages/3d/environments/land-

scapes/stylized-earth-94673
