Executing Lifecycle Processes
in Object-aware Process Management
Sebastian Steinau, Kevin Andrews, and Manfred Reichert
Institute of Databases and Information Systems, Ulm University, Germany
{sebastian.steinau,kevin.andrews,manfred.reichert}@uni-ulm.de
Abstract. Data-centric approaches to business process management, in
general, no longer require specific activities to be executed in a certain
order, but instead data values must be present in business objects for a
successful process completion. While this holds the promise of more flex-
ible processes, the addition of the data perspective results in increased
complexity. Therefore, data-centric approaches must be able to cope with
the increased complexity, while still fulfilling the promise of high process
flexibility. Object-aware process management specifies business processes
in terms of objects as well as their lifecycle processes. Lifecycle processes
determine how an object acquires all necessary data values. As data val-
ues are not always available in the order the lifecycle process of an object
requires, the lifecycle process must be able to flexibly handle these devia-
tions. Object-aware process management provides operational semantics
with built-in flexible data acquisition, instead of tasking the process mod-
eler with pre-specifying all execution variants. At the technical level, the
flexible data acquisition is accomplished with process rules, which effi-
ciently realize the operational semantics.
Keywords: lifecycle execution, data-centric processes, flexible data ac-
quisition, process rules
1 Introduction
Data-centric modeling paradigms part with the activity-centric paradigm, and
instead base process modeling and enactment on the acquisition and manip-
ulation of business data. In general, a data-centric process no longer requires
certain activities to be executed in a specific order for successful completion.
Instead certain data values must be present, regardless of the order in which
they are acquired. Activities and decisions consequently rely on data conditions
for enactment, e.g., an activity becomes executable once required data values
are present. While this holds the promise of vastly more flexible processes in
theory, it is no sure-fire success. The increased complexity from considering the
data perspective in addition to the control-flow perspective requires a thoughtful
design of any approach for modeling and enacting data-centric processes. This
design should enable the flexibility of data-centric processes, while still being
able to manage the increased complexity.
2 Sebastian Steinau, Kevin Andrews, and Manfred Reichert
Object-aware process management [16] is a data-centric approach to busi-
ness process support that aims to address this challenge. In the object-aware
approach, business data is held in attributes. Attributes are grouped into ob-
jects, which represent logical entities in real-world business processes, e.g., a
loan application or a job offer. Each object has an associated lifecycle process
that describes which attribute values need to be present for successfully process-
ing the object. Lifecycle processes adopt a modeling concept that resembles an
imperative style, i.e., the model specifies the default order in which attribute val-
ues are required. Studies have indicated that imperative models show advantages
concerning understandability compared to declarative models, which are known
for flexibility [11, 20]. While the imperative style allows for an easy modeling
of lifecycle processes, it seemingly subverts the flexibility promises of the data-
centric paradigms, as imperative models tend to be rather rigid [25]. However,
in object-aware process management, the operational semantics of lifecycle pro-
cesses allow data to be entered at any point in time, while still ensuring correct
process execution. The imperative model provides only the basic structure. This
has the advantage that modelers need not concern themselves with modeling
flexible processes, instead the flexibility is built into the operational semantics
of lifecycle processes.
The functional specifications of the operational semantics of lifecycle pro-
cesses have partially been presented in previous work [15]. This paper expands
upon this work and contributes extended functionality and the technical im-
plementation of the operational semantics, provided in the PHILharmonicFlows
prototype. In particular, the logic involving execution events has been completely
redesigned to include completion and invalidation events. These event types be-
came necessary as otherwise the consistency of the lifecycle process was not
guaranteed. Further, decision making in lifecycle processes has been improved
by redesigning the data-driven operational semantics of decisions.
The technical implementation is based on the process rule framework, a light-
weight, custom process rule engine. The framework is based on event-condition-
action (ECA) rules, which enable reacting to every contingency the functional
specification of the operational semantics permit, i.e., correct lifecycle process
execution is ensured. The process rule framework will further provide the founda-
tion for implementing the operational semantics of semantic relationships and
coordination processes, the object-aware concept for coordinating objects and
their lifecycle processes [23]. Such a coordination is necessary, as objects inter-
act and thereby form large process structures, constituting an overall business
process [22]. As such, coordination processes enable collaborations of concur-
rently running lifecycle processes, having the advantage of separating lifecycle
process logic and coordination logic. With the transition of PHILharmonicFlows
to a hyperscale architecture [2], the process rule framework is fully compatible
with the use of microservices, enabling a highly concurrent execution of multiple
lifecycle processes with large numbers of user interactions.
The remainder of the paper is organized as follows: Section 2 provides the
fundamentals of object-aware process management. In Section 3, the extended
Executing Lifecycle Processes in Object-aware Process Management 3
operational semantics are presented. The process rule framework at the core
of the operational semantics implementation is described in Section 4. Finally,
Section 5 discusses related work, whereas Section 6 concludes the paper with a
summary and an outlook.
2 Fundamentals
Object-aware process management organizes business data in form of objects,
which comprise attributes and a lifecycle process describing object behavior.
PHILharmonicFlows is the implementation of the object-aware concept to pro-
cess management. Object-aware process management distinguishes design-time
entities, denoted as types (formally T), and run-time entities, denoted as in-
stances (formally I). Collectively, they are referred to as entities. At run-time,
types may be instantiated to create one or more corresponding instances. For
the purposes of this paper, object instance (cf. Definition 1) and lifecycle process
instance (cf. Definition 2) definitions are required. The corresponding type defi-
nitions can be found in [16]. The “dot” notation is used to describe paths, e.g.,
for accessing the name of an object instance. ⊥describes the undefined value.
Definition 1. (Object Instance)
An object instance ωIhas the form (ωT, n, ΦI, θI)where
–ωTrefers to the object type from which this object instance has been gener-
ated.
–nis the name of the object instance.
–ΦIis a set of attribute instances φI, where φI= (n, κ, vκ), with nas the
attribute instance name, κas the data type (e.g., String, Boolean, Integer),
and vκas the typed value of the attribute instance.
–θIis the lifecycle process (cf. Definition 2) describing object behavior.
An object’s lifecycle process (cf. Definition 2) is responsible for acquiring
data values for the attributes of the object.
Definition 2. (Lifecycle Process Instance)
Alifecycle process instance θIhas the form (ωI, ΣI, Γ I, TI, ΨI, Eθ, µθ)
where
–ωIrefers to the object instance to which this lifecycle process belongs.
–ΣIis a set of state instances σI, with σI= (n, Γ I
σ, TI
σ, ΨI
σ, µσ)where
•nis the state name.
•ΓI
σ⊂ΓIis subset of steps γI.
•TI
σ⊂TIis a subset of transitions τI.
•ΨI
σ⊂ΨIis a subset of backwards transitions ψI.
•µσis the state marking.
–ΓIis a set of step instances γI, with γI= (φI, σI, T I
in, T I
out, P I, λ, µγ, dγ)
where
4 Sebastian Steinau, Kevin Andrews, and Manfred Reichert
•φI∈ωI.ΦIis an optional reference to an attribute instance φIfrom ΦI
of object instance ωI. Default is ⊥.
If φI=⊥, the step is denoted as an empty step instance.
•σI∈ΣIis the state instance to which this step instance γIbelongs.
•TI
in ⊂TI
σis the set of incoming transition instances τI
in.
•TI
out ⊂TI
σis the set of outgoing transition instances τI
out.
•PIis a set of predicate step instances ρI,PImay be empty, with
ρI= (γI, λ)where
∗γIis a step instance.
∗λis an expression representing a decision option.
If PI6=∅, the step instance γIis called a decision step instance.
•λis an optional expression representing a computation.
If λ6=⊥, the step instance γIis called a computation step instance.
•µγis the step marking, indicating the execution status of γI.
•dγis the step data marking, indicating the status of φI.
–TIis a set of transition instances τI, with τI= (γI
source , γI
target ,ext, p, µτ)
where
•γI
source ∈Γis the source step instance.
•γI
target ∈Γis the target step instance.
•ext := γI
source .σI=γI
target .σIis a computed property, denoting the tran-
sition as external, i.e., it connects steps in different states.
•pis an integer signifying the priority of the transition.
•µτis the transition marking.
–ΨIis a set of backwards transition instances ψI,ΨImay be empty, with
ψI= (σI
source , σI
target , µψ)where
•σI
source ∈ΣIis the source state instance.
•σI
target ∈ΣIis the target state instance, σI
target ∈Predecessors(σI
source ).
•µψis the backwards transition marking.
–Eθis the event storage for θI, storing execution events E.
–µθis the lifecycle process marking.
All sets are finite and must not be empty unless specified otherwise. The function
Predecessors:σI→ΣIdetermines a set of states from which σIis reachable.
The function Successors is defined analogously.
Note that for the sake of brevity the value of a step γIrefers to the value of
the corresponding attribute γI.φI. Furthermore, correctness criteria have been
omitted from Definitions 1 and 2. For the sake of clarity, a lifecycle process
is described by a directed acyclic graph with one start state and at least one

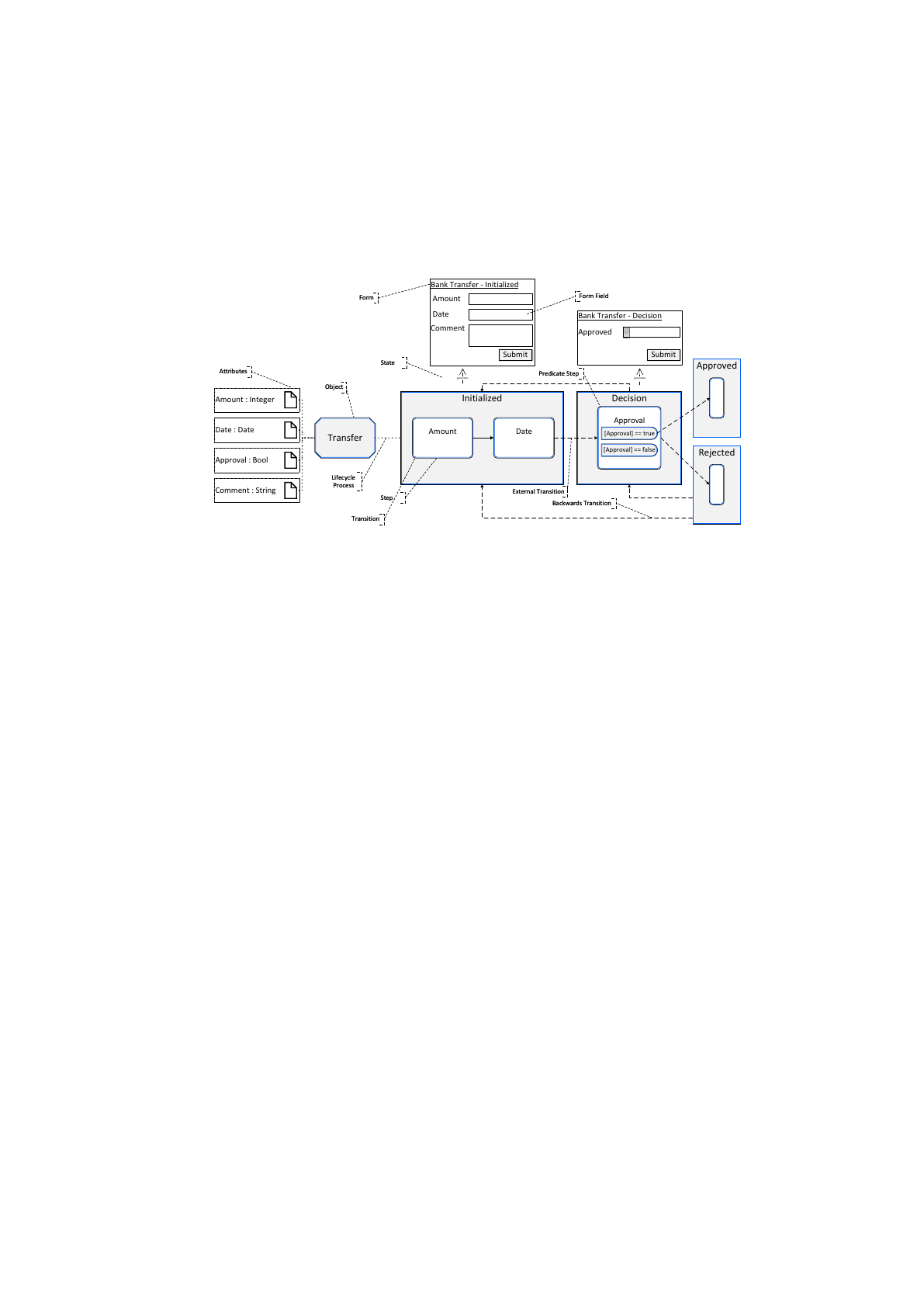

end state. Figure 1 shows object instance Bank Transfer with its attributes and
lifecycle process. The object instance represents a simplified transfer of money
from one account to another.For this purpose, the states and the steps of a
lifecycle process can be used to automatically generate forms. This is unique for
process management systems, as in other systems, forms must still be designed
manually, leading to a huge difference regarding productivity [25]. Additionally,
when executing a process, the auto-generated forms are filled in by authorized
users. The PHILharmonicFlows authorization system and its connection to form
Executing Lifecycle Processes in Object-aware Process Management 5
auto-generation has been discussed in [1]. In essence, forms may be personalized
automatically based on the user’s permissions, no different form designs showing
different form fields are necessary.
Bank Transfer - Decision
Bank Transfer - Initialized
RejectedRejected
ApprovedApproved
DecisionDecisionInitializedInitialized
Amount : IntegerAmount : IntegerAmount : Integer
Date : DateDate : DateDate : Date
Approval : BoolApproval : BoolApproval : Bool
Comment : StringComment : StringComment : String
ObjectObject
AttributesAttributes
Lifecycle
Process
Lifecycle
Process
StateState
StepStep
Predicate StepPredicate Step
Backwards TransitionBackwards Transition
TransitionTransition
Amount
Date
Submit
Comment Approved
generates generates
Submit
FormForm Form FieldForm Field
External TransitionExternal Transition
TransferTransfer AmountAmount DateDate
Approval
[Approval] == true[Approval] == true
[Approval] == false[Approval] == false
Approval
[Approval] == true
[Approval] == false
Fig. 1. Example object and lifecycle process of a Transfer
As depicted in Figure 1, the state σI
Initialized contains steps γI
Amount and
γI
Date, signifying that values for attributes φI
Amount and φI
Date are required during
process execution. For the sake of brevity, the properties of an entity (e.g., the
name of a step γ) may be written as a subscript, e.g., γAmount for the first
step in Figure 1. The form corresponding to σI
Initialized contains input fields for
steps γI
Amount and γI
Date. This means a state represents a form, whereas the steps
represent form fields. The φI
Comment field is an optional field visible to a user due
to the authorization system of PHILharmonicFlows. In state σI
Decision, a decision
step γI
Approval represents the approval of the bank for the money transfer. The
automatically generated form displays γI
Approval as a drop-down field. End states
σI
Approved and σI
Rejected display an empty form, as the contained steps are empty
(cf. Definition 2). Transitions determine at run-time which attribute value is
required next, an external transition also determines the next state. Backwards
transitions allow returning to a previous state, e.g., to correct a data value.
3 Lifecycle Process Operational Semantics
Data acquisition in PHILharmonicFlows is achieved through forms, which can
be auto-generated from lifecycle process models θI. A form itself is mapped to a
state σIof the lifecycle process θI; form fields are mapped to steps γI. In conse-
quence, the operational semantics of lifecycle processes emulate the behavior of
electronic and paper-based forms, following a “best of both worlds” approach.
6 Sebastian Steinau, Kevin Andrews, and Manfred Reichert
Paper-based forms provide a great overview over the form fields, i.e., every form
field may be viewed at any point in time. Further, they provide a reasonable de-
fault structure, but allow filling form fields at any point in time and in any order,
e.g., starting to fill in form fields in the middle of the form is possible. In turn,
electronic forms usually provide less overview, i.e., viewing subsequent forms is
not possible before having filled out all mandatory fields in the current form. In
contrast to paper-based forms, however, electronic forms are able to only dis-
play relevant fields, especially in context of decision branching. For example, an
electronic anamnesis form at a physician’s office may skip the questions related
to pregnancy entirely if the patient is male. Additionally, electronic forms allow
for data values to be easily changed as well as for data input verification, e.g.,
ensuring that a date has the correct format or all mandatory form fields possess
a value. PHILharmonicFlows combines the advantages of both paper-based and
electronic forms, providing flexibility in entering data while ensuring a correct
lifecycle process execution.
3.1 Lifecycle Process Execution
For realizing the combined benefits, the progress of a lifecycle process θIis
determined by its active state σI
A, i.e., marking σI.µσ=Activated. Only one
state σIof θImay be active at any point in time. Per default, the form of the
active state is displayed to a user when executing lifecycle process θI. However,
the user may choose to display forms of other states. When processing θI, the
active state changes, depending on data availability and decision results. For
example, in regard to Figure 1, starting the execution of the lifecycle process
activates σI
Initialized. If values for steps γI
Amount and γI
Date are available (cf.
Section 3.2), σI
Initialized may be marked as µσ=Confirmed, and the next state
σI
Decision becomes active, i.e., σI
Decision.µσ=Activated. Depending on the value
of γI
Approval, either σI
Approved or σI
Rejected becomes active. As both states are end
states, the execution of θIterminates. The active state possesses a crucial role in
the execution of θI, as consequences from data acquisition or decisions are only
evaluated for the active state. For example, providing value true to γI
Approval
does not trigger the decision, if σI
Initialized is the currently active state. This
is to avoid inconsistent processing states, e.g., because a previous decision may
make filling out a state σIobsolete due to dead-path elimination [16].
For several reasons, including automatic form generation and process lifecycle
coordination, only exactly one state may be active at a given point in time. If two
or more state had become simultaneously active, it would be unclear which form
should be presented to the user, or what the progress of the lifecycle is. State
execution (cf. Section 3.2) must therefore enforce that only exactly one state
may activate at the conclusion of a previous one. In consequence, the enabling
of external transitions must be mutually exclusive. Regarding decisions steps and
its predicate steps, additional measures are required to prevent the simultaneous
enabling of different transitions.
For states Successors(σI
A), data values may be entered, but processing only
occurs once a state becomes active. All successor states possess marking µσ=
Executing Lifecycle Processes in Object-aware Process Management 7
Waiting. If a user enters values for steps γI, these values will be stored and
taken into account if the corresponding state γI.σIbecomes active. To indicate
the status of the corresponding attribute value, steps possess a data marking dγ.
When setting the data value for a step γI
hasV alue, where the state instance σIhas
µσ=Waiting, the data marking of γI
hasV alue is set to dγ=Preallocated. Should
σIbecome active during process execution, dγ=Preallocated will indicate that
a value is present and thus is not be required anymore (cf. Section 3.2).
States that have already been processed, i.e., Predecessors(σI
A), will ei-
ther have marking µσ=Confirmed or µσ=Skipped. States with marking
µσ=Confirmed have previously been active, whereas skipped states have under-
gone a dead-path elimination. For reasons of data integrity, the values of steps in
skipped or confirmed states must not be altered at any point in time. If allowed,
inconsistencies and unpredictable execution behavior may occur. For example,
changing values of decisions steps in an uncontrolled way might activate currently
eliminated states, whereas currently active states become eliminated. However,
it must be possible to correct mistakes for previously entered and accidentally
confirmed data. Therefore, backwards transitions (cf. Definition 2) allow for the
reactivation of confirmed states in a controlled way, where the data may be al-
tered in a consistent and safe way; consequently, subsequent changes in decisions
can be handled properly. The reactivation of states and correction of mistakes
contributes much to the flexibility of object-aware lifecycle process execution.
3.2 State Execution
While PHILharmonicFlows is capable of auto-generating forms from states and
steps, so far, these forms are static. However, there are dynamic aspects to a form,
e.g., the indication which value is required next or which external transition or
backwards transition may be committed. For this purpose, a lifecycle process θI
provides execution events Eand an event storage Eθ. Execution events are dy-
namically created when processing a lifecycle process θI. When auto-generating
a form, the static form is enriched with dynamic information from Eθand dis-
played to the user. Execution events have different subtypes, namely request
events, completion events, and invalidation events. When request events are cre-
ated, they are stored in Eθand are then used to enrich the form. Completion
and invalidation events remove request events from Eθ, when a request event are
either fulfilled or no longer valid, respectively. The usage of the event storage Eθ,
in conjunction with the generated static forms, allows multiple users access to
the same form, due to the centralized storage of the dynamic form data. The use
of Eθfurther allows preserving dynamic data over multiple sessions, i.e., a user
may partially fill out a form, close it and do something else, and later return and
continue where the user previously stopped. It is even possible that another user
finishes filling out the form, introducing additional flexibility. In general, storing
execution events Eensures consistency regardless of any user interaction with
the forms.
The creation and removal of execution events is primarily determined by the
respective marking µof states, steps, transitions, and backwards transitions. For
8 Sebastian Steinau, Kevin Andrews, and Manfred Reichert
steps with an attribute (i.e., γI.φI6=⊥), data marking dγis also taken into ac-
count. For example, if step γI
Amount in Figure 1 has marking µγ=Enabled, but
γI
Amount.dγ=Unassigned holds, an “attribute value request” event is created
and stored in Eθafter some intermediate processing steps. If a user accesses
the form for σI
Initialized, the form field for γI
Amount is tagged with an asterisk,
indicating that a value is mandatory (cf. Figure 2). As soon as the user provides
a value for the γI
Amount form field, the data marking for γI
Amount is updated to
dγ=Assigned. This indicates that a value has been successfully provided for
γI
Amount. In consequence, the attribute value request event in Eθis no longer
necessary. Therefore, setting dγ=Assigned triggers a completion event remov-
ing the “attribute value request” event from Eθ. After the completion event
has occurred, more markings change in a cascading fashion, leading to the step
γI
Amount being marked as Unconfirmed. This enables the outgoing transitions
γI
Amount, which, in turn, leads to the next step γI
Data receiving µγ=Enabled.
The data marking γI
Date.dγ=Unassigned triggers the same chain of events and
marking changes analogously to the marking change of γI
Amount.
Bank Transfer - Initialized
Amount*
Date
Submit
Comment
Fig. 2. Form enriched with execu-
tion events
Handling Preallocated Data Values To
illustrate the automatic handling of pre-
allocated data values, it is assumed that
another user has already provided value
false for γI
Approval in state σI
Decision, i.e.,
γI
Approval.dγ=Preallocated holds. Note that
this provision of a value outside of the nor-
mal execution order is a feature of the op-
erational semantics of lifecycle processes and
not merely part of the example. As σI
Decision
is not currently the active state (i.e., µσ=
Waiting), decision step γI
Approval is not evalu-
ated. When reaching γI
Approval from γI
Date af-
ter a state change, γI
Approval receives marking µγ=Enabled. Instead of cre-
ating an “attribute value request” event, the combination of data marking
dγ=Preallocated and marking µγ=Enabled immediately switches data mark-
ing to dγ=Assigned. Consequently, as no attribute value request event has
been raised beforehand, the completion event for providing a value is omitted.
As γI
Approval is a decision step, value false subsequently leads to the activation
of state σI
Rejected (cf. Figure 1), in which θIterminates. Note that the end state
remains active despite the termination of the lifecycle process instance. In gen-
eral, the operational semantics of lifecycle processes ensure that a previously
provided value requires no further user interaction by default. However, users
may still change the value afterwards should they wish to do so. Overall, the
user may flexibly enter and alter data, and the operational semantics ensure
data integrity.
Executing Lifecycle Processes in Object-aware Process Management 9
Handling Decision Steps Previously, decision step γI
Approval was provided
with a preallocated data value and state σI
Rejected was reached, but the details
pertaining to the handling of decision steps were omitted. In the following, the
handling of a generic decision step γI
Dec with γI
Dec.P I6=∅is discussed in detail.
The discussion uses the standard processing case γI
Dec.φI=⊥, i.e., initially γI
Dec
has no preallocated data value. Due to the presence of one or more predicate
steps ρI∈γI
Dec.P Irepresenting decision options, more intermediate steps are
necessary for the handling of decision steps when compared to ordinary steps.
Until a completion event occurs after a value has been provisioned for a decision
step γI
Dec, the decision step behaves identically to an ordinary step. Initially,
when γI
Dec has marking µγ=Enabled and dγ=Unassigned, an attribute value
request event is raised, a data value will be provided, and subsequently a com-
pletion event erases the “attribute value request” event from the event storage.
At this point, the predicate steps ρIof the decision step is evaluated and it is de-
termined which decision options apply. For each predicate step ρI, its expression
representing the predicate is evaluated.
For decision step γI
Approval , two predicate steps ρI
true and ρI
false exist. The
predicate steps are equipped with expressions representing the actual predicate,
λtrue : [Approval] == true and λfalse : [Approval]== false, respectively (cf.
Figure 1). On provision of a value (w.l.o.g. it is assumed this value is false)
for γI
Approval , each predicate step is evaluated. For ρI
true, this evaluation returns
false and accordingly marking µρ=Bypassed is set. Marking Bypassed indicates
that this decision option is not valid and subsequent execution paths cannot be
taken. For ρI
false, the expression λfalse : [Approval] == false evaluates to true
and µρ=Activated is set. The markings of predicate steps ρI
true and ρI
false are
shown in Figure 3.
RejectedRejected
ApprovedApproved
DecisionDecision
Approval
Enabled
[Approval] == false
Activated
[Approval] == true
Bypassed
Fig. 3. Decision step execution status
Once each predicate step ρIhas
been evaluated, the results affect the
marking of the decision step γI
Dec it-
self. In general, two cases need to be
distinguished.
First, if all predicate steps possess
marking µρ=Bypassed, the decision
step γI
Dec must be marked as Blocked.
This marking indicates that the pro-
visioned value did not lead to a suc-
cessful evaluation of the decision op-
tions, and the execution of the lifecy-
cle process can therefore not proceed.
To rectify the issue, a new value for
γI
Dec needs to be provided. In turn,
this triggers another evaluation of the
predicate steps, ensuring that process
execution is not stuck when an invalid value has been provisioned.
10 Sebastian Steinau, Kevin Andrews, and Manfred Reichert
In the second case, at least one of the predicate steps’ expressions evalu-
ate to true and process execution may proceed. This is the case in Figure 3
with the predicate steps of γI
Approval . Decision step γI
Dec becomes marked as
µγ=Activated. Subsequently, a series of marking changes occurs, leading to the
decision step and its predicate steps with marking µρ=Activated to be marked
as Unconfirmed. For decision steps, this raises several challenges that need to
be solved in regard to its outgoing transitions becoming enabled. First, to allow
modeling sophisticated decisions, it is permitted that predicates overlap, i.e., for
a given data value, two or more predicates may evaluate to true. In turn, this
might lead to the simultaneous enabling of outgoing transitions of the predicate
steps. This is not permitted, as for example two states may be become active at
the same time. For this reason, lifecycle processes perform a priority evaluation
when multiple transitions are about to become enabled. Each transition τIhas
an assigned priority τI.p (cf. Definition 2). Only the transition with the high-
est priority becomes enabled, whereas all others are marked as Bypassed. The
priorities are assigned by the process modeler at design time, allowing for full
control over decision options with overlapping predicates.
Handling Backwards Transitions and Invalidation Events Consider again
the example from before, where at the moment the lifecycle process has termi-
nated and σI
Rejected is the active state. In this situation, a user decides he wants
to revise his decision for approval and thus change the value of γI
Approval from
false to true. After σI
Rejected had become active, two backwards transition in-
stances ψI
T oInit and ψI
T oDec became confirmable, i.e., their marking changed to
µψ=Confirmable. In consequence, two “backwards transition confirm request”
events were created, one for each backwards transition, and then were stored in
Eθ.
RejectedRejected
To State
Initialized
To State
Decision
From State
Decision
Fig. 4. Backwards transitions
This allows going back to state
σI
Initialized, by using ψI
T oInit, or going
back to σI
Decision, by using ψI
T oDec.
However, only one state may be ac-
tive at once. Therefore, only one
backwards transition may be taken.
To revise the value of γI
Approval,
ψI
T oDec must be confirmed. Confirm-
ing ψI
T oDec causes its marking to
change to µψ=Ready. Analogously
to a step, a completion event is cre-
ated, which removes the correspond-
ing “backwards transition confirm re-
quest” event from Eθ. Subsequently,
σI
Rejected is marked as µσ=Waiting and σI
Decision is marked as µσ=Activated,
which allows altering the value of γI
Approval to true. As σI
Rejected is no longer ac-
tive, ψI
T oInit and ψI
T oDec become marked as µψ=Waiting. Resetting the mark-
Executing Lifecycle Processes in Object-aware Process Management 11
ings of both ψI
T oInit ,ψI
T oDec, and σI
Rejected to Waiting enables their reuse, e.g.,
if the value of γI
Approval remains unchanged and the same path is taken again.
With state σI
Decision becoming active again, it is possible to change the value
of σI
Approval. However, the “backwards transition confirm request” event belong-
ing to ψI
T oInit is still stored in Eθ, despite ψI
T oInit having been marked with
µψ=Waiting, i.e., confirming ψI
T oInit is no longer possible. Obviously, this con-
stitutes an inconsistency between the forms and the lifecycle process. The form
displays a button with the option that ψI
T oInit can be confirmed, but on press-
ing the button the PHILharmonicFlows system produces an error and other,
possibly worse, side effects. As a consequence, the operational semantics include
invalidation events, with the purpose to remove invalid or obsolete execution
events from event storage Eθ. An invalidation event occurs when entities with
a request event, e.g., backwards transitions, are not successfully completed, but
become changed due to other circumstances, e.g., the confirmation of another
backwards transition.
Request events, completion events, and invalidation events are used in many
more situations than discussed above. The basic principles, however, are always
the same, and, embedded in the overall operational semantics, provide a robust
and flexible way to acquire data values for lifecycle processes. The imperative-like
modeling style of lifecycle processes, from which forms can be auto-generated di-
rectly, significantly reduces modeling time and efforts. The operational semantics
provide the necessary flexibility to users interacting with the forms. Furthermore,
the use of forms and the emulation of standard form behavior simplifies the usage
of the PHILharmonicFlows system for non-expert users.
Overall, this section described the functional aspects of the operational se-
mantics of lifecycle processes. The technical implementation of these operational
semantics with the Process Rule Framework is presented in Section 4.
4 The Process Rule Framework
In the description of the operational semantics of lifecycle processes (cf. Section
3), at the lowest level, progress is driven by the change of markings. Marking
changes elicit the creation of execution events, which, in turn, results in user
actions, e.g., the provision of a data value for an attribute. This user interac-
tion is reflected in the lifecycle process by setting new markings. This may be
viewed as a chain of events, and, consequently, event-condition-action rules are
used as the technical basis for the technical implementation of the operational
semantics. In PHILharmonicFlows, a specialized variant of ECA rules, denoted
as process rules, is employed for this purpose. Process rules and the means to
specify them constitute one part of the process rule framework. To create an
execution sequence, such as the one described in Section 3.2, process rules need
to form process rule cascades, i.e., a rule triggers an event, which may trigger an-
other rule, which again triggers an event. Furthermore, process rules are uniquely
suited to deal with the different eventualities emerging during the execution of
lifecycle processes. For example, a state σImay become active in context of
12 Sebastian Steinau, Kevin Andrews, and Manfred Reichert
normal process execution progress or due to the use of a backwards transition
ψI. Subsequently, different follow-up measures may be required, e.g., the reset-
ting of markings for steps γI∈σI.Γ Iin case the backwards transition became
activated.
The basic definition of a process rule is given in Definition 3. In order to
distinguish these symbols from symbols used in the definition of object instances,
superscript Ris used.
Definition 3. A process rule pRhas the form (, eT, CR, AR) where
–is an event triggering the evaluation of the rule.
–eTis an entity type, e.g., a step type γT.
–CRis a set of preconditions in regard to eT.
–ARis a set of effects.
Process rules pRmay be evaluated, i.e., their preconditions CRare checked
and, if all are fulfilled, the effects ARare applied. An evaluation is triggered when
the event occurs. Events are always raised by a particular entity instance eI,
e.g., a step γIor a transition τI.eTis an entity type that provides the context for
defining conditions and effects. Furthermore, it provides an implicit precondition,
meaning a rule is not evaluated if the entity instance eIraising was not created
from eT. Preconditions CRcheck different properties of an entity, e.g., whether
the entity has a specific marking. Effects ARapply different effects to an entity,
e.g., setting the marking of an entity. Note that preconditions and effects are
not limited to properties belonging to instances of eT. They may also access or
set properties of neighbor entities. For example, a rule defined for a step γTmay
have effects that set markings for the outgoing transitions τI
out ∈γI.TI
out of the
corresponding step instance.
Fig. 5. Fluent interface definition of a marking rule in code
In the PHILharmonicFlows implementation, process rules are created using
a domain-specific language. Figure 5 shows an example of how a process rule is
Executing Lifecycle Processes in Object-aware Process Management 13
represented. Process rules are often subject to change, as new features for PHIL-
harmonicFlows are added or errors in lifecycle process execution are resolved.
In order to be able to quickly adapt a process rule, the process rule framework
uses a fluent interface for process rule specification, i.e., the domain-specific lan-
guage is structured to resemble natural prose text. This allows for both a high
readability and maintainability.
The operational semantics introduced in Section 3 allow identifying different
use cases for process rules. For example, one type of process rule raises execution
events based on specific markings, while another type reacts to user input and
sets appropriate markings. Accordingsly, process rules are subdivided based on
their purpose. The type determines the general type of preconditions and effects,
e.g., preconditions of marking rules check predominantly for specific markings.
The different types of process rules are summarized in Table 1. Request rule,
completion rule, and invalidation rule are subsumed under the term execution
rule (ER).
Table 1. Overview over the types of process rules
Rule Abbreviation Event Preconditions Effects
Marking Rule MR Marking Event Markings Markings
Request Rule QR Marking Event Markings Request Event
Completion Rule CR Marking Event Markings Completion Event
Invalidation Rule IR Marking Event Markings Invalidation Event
Reaction Rule RR User Input Event User Input Markings
The most common event that is raised during the execution of a lifecycle
process instance is a marking event. An entity instance eIraises a marking event
whenever its marking eI.µ is changed. In order to determine which process rule
needs to be applied, the event is gathered by the process rule manager (PRM)
of the lifecycle process. The process rule manager is a small and lightweight
execution engine for process rules and constitutes the other part of the process
rule framework. Figure 6 shows a schematic view of the process rule manager
and its interactions with the lifecycle process and the (auto-generated) forms.
Starting at 1
in Figure 6, data has been entered into a form field. The data
is then passed on to the lifecycle process θIand the corresponding step γI. As
γIhas received a value, the step raises a user input event 2
. The event is passed
on to the process rule manager, which receives all events from its corresponding
lifecycle process θIand evaluates appropriate rules, i.e., process rules pRwith
pR.eT=σTare not evaluated if the entity creating the event has type γT. Note
that this implicit precondition significantly reduces the search space for process
14 Sebastian Steinau, Kevin Andrews, and Manfred Reichert
State State State
StepStep StepStep StepStep StepStep StepStep
AttributeValueRequestEvent
AttributeValueRequestEvent
AttributeValueRequestEvent
TransitionConfirmRequestEvent
Object
Execution Event
Storage Eθ
Process Rule Manager
Forms
Static form data
and execution events
User input events
Marking events
Reaction rule application
Marking rule application
Cascading rule application
Request events
Completion/invalidation events
Data (Attribute Values, Transition Cobfirmations,..)
1
23
4
5
Fig. 6. Process rule manager and schematic process rule application
rule application. Once the PRM has identified all currently applicable rules, the
effects of each rule are applied. In the example, the PRM identifies a reaction
rule and applies its effects to the appropriate entities in the lifecycle process 3
.
Applying the effects from the reaction rule application raises marking events,
which trigger a completion rule and a marking rule in the PRM. The completion
rule raises a completion event 4
, removing the request event for the mandatory
form field from event storage Eθof θI. In parallel, the marking rule sets markings
for the outgoing transitions TIof step γI. This again creates marking events,
resulting in a cascade of marking rules, i.e., the PRM alternates between 2
and 3
in Figure 6. The process rule cascade stops when the next step becomes
marked with µγ=Enabled. This raises a request event, which is deposited in
event storage Eθ4
. When a user views a form, the updated event storage Eθ
and the static form data are combined into a new form 5
. When the user enters
data for the next form field, the cycle starts again at 1
.
When a user fills out a form, the form is expected to tell the user immediately
which form field is required next after providing data for a form field. Long
processing times are prohibitive for the usability of the PHILharmonicFlows
process management system. In order to have full control over processing times
and the tight connection of process rules with lifecycle process entities, it was
decided to implement the PRM as a custom, lightweight rule engine. A custom
PRM implementation offers a fine-grained control over process rule application.
By default, the PRM handles events in the order in which they arrive (FIFO
principle). However, in several cases, the handling of specific events needed to be
Executing Lifecycle Processes in Object-aware Process Management 15
delayed or accelerated in order to ensure a form processing in compliance with the
operational semantics. For example, an event eτtriggering the transition τIfrom
a source state σI
source to a target state σI
target is, under certain circumstances,
raised before all steps γI∈σI
source.Γ Ihave been processed. This results in errors
in the application of the process rules, as the target state σI
target already received
µσ=Activated when events from γI∈σI
source.Γ Iarrive at the PRM. To prevent
such errors, the handling of the state transition event eτmust be delayed until
all steps γIin the source state σI
source have finished processing. In consequence,
the PRM was extended with a priority queue that retains the FIFO principle,
but allows assigning different priorities to events, accelerating or delaying them
as needed.
Fig. 7. Run-time environment of PHILharmonicFlows, executing a Transfer lifecycle
process
Figure 7 shows the run-time environment of the PHILharmonicFlows proto-
type, which is currently executing a Transfer object. Besides the advantages for
the application of process rules, the lightweight nature of the PRM also proves
beneficial for the transition of PHILharmonicFlows to a microservice-based ar-
chitecture. The PRM was initially conceived as a monolithic rule engine, i.e.,
all lifecycle processes use the same instance of the PRM. Currently, PHILhar-
monicFlows is moving towards a hyperscale architecture [2], based on a mi-
croservice framework. A microservice is a lightweight and independent service
that performs single functions and interacts with other microservices in order
to realize a software application. In this new hyperscale architecture, an object
and its lifecycle process are implemented as a single microservice. A continued
use of a single PRM instance generates a significant performance overhead due
to the necessary message exchanges between the PRM and the microservices.
The single PRM instance is a bottleneck and puts a limit on the scalability
of the microservice-based architecture, i.e., it would no longer be warranted to
16 Sebastian Steinau, Kevin Andrews, and Manfred Reichert
designate the PHILharmonicFlows system as hyperscale. Furthermore, the com-
munication overhead and the delays of process rule application in the PRM,
due to the high number of events simultaneously created by the object instance
microservices, would negatively affect the performance of the auto-generated
forms.
Fortunately, the lightweight nature of the PRM offers a satisfactory solution.
By integrating an instance of the PRM into the microservice of each object in-
stance, no message exchanges between PRM and lifecycle process are required.
Furthermore, a PRM instance is only responsible for exactly one lifecycle process
instance. This eliminates the delays in rule application due to the processing
of other lifecycle processes. This solution offers sufficient performance for dis-
playing dynamic forms while retaining the hyperscale property of the PHILhar-
monicFlows microservice-based architecture. The approach to integrate a PRM
instance into a microservice will also be used with the implementation of coor-
dination processes, where it will provide the same benefits.
Performance measurements of the whole PHILharmonicFlows prototype are
a delicate endeavor and are therefore subject to a separate publication, where the
performance measurements can receive the necessary context and diligence. As a
fully integrated system supporting high scalability and parallelism through mi-
croservices, where also multiple concepts work together (objects, their relations,
lifecycles and coordination processes to govern object interactions) to achieve a
meaningful business process, a performance evaluation of executing one single
lifecycle process is not particularly enlightening. A publication on performance
aspects of the PHILharmonicFlows systems is therefore subject to future publi-
cations.
5 Related Work
Opus [8, 10] is a data-centric process management system that bases its pro-
cesses on Petri nets. Petri nets are a popular and well-established formalism for
modeling business processes. Additionally, Petri nets provide several verification
techniques, e.g., soundness checks or deadlock detection, which may also be ap-
plied to verify process model correctness. In Opus, the Petri net formalism is
extended with structured data tuples, which substitute the places of a standard
Petri net. The transitions of this extended Petri net provide operations on the
data, e.g., operations derived from operations of relational algebra. The Opus
approach does not support automatically generating forms from process models.
Furthermore, Petri nets are inherently more rigid in their execution and do not
provide the same built-in flexibility as PHILharmonicFlows and the operational
semantics of lifecycle processes. However, Opus is capable to explicitly model the
different execution paths to provide flexible process execution. Opus provides an
implemented prototype of the approach [9].
Case Handling [7, 21, 24] defines a case in terms of activities and data objects.
Activities are ordered in an acyclic graph in which edges represent precedence
relations. To execute an activity, all precedence relations before the activity must
Executing Lifecycle Processes in Object-aware Process Management 17
be fulfilled. Furthermore, the execution of an activity is restricted by data bind-
ings. A data binding represents a condition so that a data object must have a
specific value at run-time. The values of the data objects are acquired by forms,
which are associated with activities. While case handling possesses forms, it is
unclear whether these can be auto-generated from the activities or must be cre-
ated manually. While both case handling and PHILharmonicFlows use an acyclic
graph to represent processes, the operational semantics for lifecycle processes in
PHILharmonicFlows allows for data to be acquired at any point in time. A case
acquires data by activities and that activities have a precedence relation, the
same flexibility in regard to data acquisition is not possible. A detailed compari-
son between case handling and object-aware process management was performed
in [4].
The Guard-Stage-Milestone (GSM) meta-model [14] is a declarative notation
for specifying artifact-centric processes [5, 13, 17]. An artifact consists of an infor-
mation model, i.e., attributes and a lifecycle model. The lifecycle model is spec-
ified using GSM. Its operational semantics are based on Precedent-Antecedent-
Consequent rules and possess different, but semantically equivalent formulations
[6]. In GSM, tasks provide the means to write attributes and acquire data. Be-
cause of being declarative, guards, stages and milestones may be used in such a
way that flexible data acquisition, within certain constraints, becomes possible.
Tasks may be defined so that attributes may be written at any point in time
and may be restricted, if necessary. Lifecycle processes defined in GSM are able
to react to the newly acquired data and might be more flexible than lifecycle
processes in PHILharmonicFlows. However, as a severe drawback, much of this
flexibility in data acquisition must be implemented by the process modeler. Fur-
thermore, the is no auto-generation of forms from GSM-specified lifecycle models
within the artifact-centric approach.
CMMN [18] is a standard notation for case management as proposed by
OMG. The notation is closely inspired by GSM and its execution semantics
and therefore inherits many of the same advantages and disadvantages. As such,
flexibility in practice has to be provided by the model and is not simply provided
by the operational semantics. Also, automatic generation of dynamic forms it
not supported.
Fragment-based case management [3, 12] is a promising approach that defines
business processes in form of pre-specified process fragments. Fragments are
specified using activities and control flow. The execution order of fragments is, in
principle, completely free, i.e., any process process fragment may be executed at
any point in time. This freedom is only limited by data conditions that govern the
activation of a process fragment, i.e., a process fragment may only be executed if
the data conditions are met. In turn, process fragments may generate new data
to fulfill other data conditions and subsequently enable more process fragments.
As data is mostly required to enable process fragments and their activities, it is
unclear whether automatic form generation with dynamic control by the process
is achievable. Through breaking rigid control flow ordering of activities with
the use of process fragments, their flexible execution may only be achieved by
18 Sebastian Steinau, Kevin Andrews, and Manfred Reichert
modeling appropriate data conditions and is not automatically provided by the
operational semantics, as accomplished in PHILharmonicFlows.
6 Summary and Outlook
The PHILharmonicFlows project is a full, though prototypical, data-centric pro-
cess management system incorporating modeling and execution environments.
One aspect of this system is to have highly flexible executions of object lifecycle
processes that require minimal effort on part of the process modeler. The sci-
entific contribution of this paper is to show that the intended level of flexibility
has been achieved. As proof, it is shown exactly how the flexibility is achieved
by describing its implementation and inner workings in full detail.
The technical implementation of the operational semantics of lifecycle pro-
cesses in object-aware process management is achieved by process rules, which
govern the changing of markings and the creation of execution events. This paper
presented the process rule framework, for which two aspects need to be empha-
sized. First, the process rule framework ensures that lifecycle processes execute
correctly and also provides the technical basis for the operational semantics of
coordination processes in PHILharmonicFlows. Coordination processes, as the
name suggests, coordinate lifecycle processes of multiple objects, so that com-
plex business processes can be realized. Its operational semantics will be based
on the process rule framework as well. Second, a performant, efficient and light-
weight technical basis for enacting lifecycle processes and coordination processes
is crucial for the transition of PHILharmonicFlows to a hyperscale architecture.
The operational semantics of lifecycle processes provide a flexible acquisition of
data, while modeling efforts are minimal due to an modeling style that is akin
to an imperative style. The flexibility is not provided by the lifecycle process
model, but by the operational semantics. The model of the lifecycle process and
the operational semantics together provide the means to auto-generate dynamic
forms.
Acknowledgments. This work is part of the ZAFH Intralogistik, funded by
the European Regional Development Fund and the Ministry of Science, Research
and the Arts of Baden-W¨urttemberg, Germany (F.No. 32-7545.24-17/3/1)
References
1. Andrews, K., Steinau, S., Reichert, M.: Enabling Fine-grained Access Control in
Flexible Distributed Object-aware Process Management Systems. In: 21st IEEE
Int’l Conf. on Enterprise Distributed Object Computing (EDOC) (2017)
2. Andrews, K., Steinau, S., Reichert, M.: Towards Hyperscale Process Management.
In: 8th Int’l Workshop on Enterprise Modeling and Information Systems Architec-
tures (EMISA). pp. 148–152. CEUR Workshop Proceedings, CEUR-WS.org (2017)
3. Beck, H., Hewelt, M., Pufahl, L.: Extending Fragment-Based Case Management
with State Variables. In: Business Process Management Workshops. pp. 227–238.
Springer, Cham (2017)
Executing Lifecycle Processes in Object-aware Process Management 19
4. Chiao, C.M., K¨unzle, V., Reichert, M.: Enhancing the Case Handling Paradigm to
Support Object-aware Processes. In: 3rd Int’l Symposium on Data-Driven Process
Discovery and Analysis (SIMPDA). pp. 89–103. CEUR Workshop Proceedings,
CEUR-WS.org (2013)
5. Cohn, D., Hull, R.: Business Artifacts: A Data-centric Approach to Modeling Busi-
ness Operations and Processes. Bulletin of the IEEE Computer Society Technical
Committee on Data Engineering 32(3), 3–9 (2009)
6. Damaggio, E., Hull, R., Vacul´ın, R.: On the Equivalence of Incremental and Fix-
point Semantics for Business Artifacts with Guard–Stage–Milestone Lifecycles. In-
formation Systems 38(4), 561–584 (2013)
7. Guenther, C.W., Reichert, M., van der Aalst, W.M.P.: Supporting Flexible Pro-
cesses with Adaptive Workflow and Case Handling. In: IEEE 17th Workshop on
Enabling Technologies: Infrastructure for Collaborative Enterprises. pp. 229–234
(2008)
8. Haddar, N., Tmar, M., Gargouri, F.: A Framework for Data-Driven Workflow Man-
agement: Modeling, Verification and Execution. In: 24th Int’l Conf. on Database
and Expert Systems Applications (DEXA). vol. 8055, pp. 239–253. Springer (2013)
9. Haddar, N., Tmar, M., Gargouri, F.: Opus framework: A Proof-of-Concept Imple-
mentation. In: IEEE/ACIS 14th Int’l Conf. on Computer and Information Science
(ICIS). pp. 639–641 (2015)
10. Haddar, N., Tmar, M., Gargouri, F.: A Data-centric Approach to Manage Business
Processes. Computing 98(4), 375–406 (2016)
11. Haisjackl, C., Barba, I., Zugal, S., Soffer, P., Hadar, I., Reichert, M., Pinggera, J.,
Weber, B.: Understanding Declare Models: Strategies, Pitfalls, Empirical Results.
Software & Systems Modeling 15(2), 325–352 (2016)
12. Hewelt, M., Weske, M.: A Hybrid Approach for Flexible Case Modeling and Execu-
tion. In: Business Process Management Forum. pp. 38–54. Springer, Cham (2016)
13. Hull, R., Damaggio, E., de Masellis, R., Fournier, F., Gupta, M., Heath,III,
Fenno Terry, Hobson, S., Linehan, M., Maradugu, S., Nigam, A., Sukaviriya, P.N.,
Vacul´ın, R.: Business Artifacts with Guard-Stage-Milestone Lifecycles: Managing
Artifact Interactions with Conditions and Events. In: 5th ACM Int’l Conf. on
Distributed Event-based System (DEBS), 2011. pp. 51–62. ACM (2011)
14. Hull, R., Damaggio, E., Fournier, F., Gupta, M., Heath,III, Fenno Terry, Hobson,
S., Linehan, M., Maradugu, S., Nigam, A., Sukaviriya, P.N., Vacul´ın, R.: Introduc-
ing the Guard-Stage-Milestone Approach for Specifying Business Entity Lifecycles.
In: 7th Int’l Workshop on Web Services and Formal Methods (WS-FM) 2010. Lec-
ture Notes in Computer Science, vol. 6551, pp. 1–24. Springer (2011)
15. K¨unzle, V., Reichert, M.: A Modeling Paradigm for Integrating Processes and Data
at the Micro Level. In: 12th Int’l Working Conf. on Business Process Modeling,
Development and Support (BPMDS). pp. 201–215. Lecture Notes in Business In-
formation Processing, Springer (2011)
16. K¨unzle, V., Reichert, M.: PHILharmonicFlows: Towards a Framework for Object-
aware Process Management. Journal of Software Maintenance and Evolution: Re-
search and Practice 23(4), 205–244 (2011)
17. Nigam, A., Caswell, N.S.: Business Artifacts: An Approach to Operational Speci-
fication. IBM Systems Journal 42(3), 428–445 (2003)
18. Object Management Group: Case Management Model and Notation (CMMN),
Version 1.1 (2016)
19. Pesic, M., Schonenberg, H., van der Aalst, W.M.P.: DECLARE: Full Support for
Loosely-Structured Processes. In: 11th IEEE Int’l Conf. on Enterprise Distributed
Object Computing (EDOC). p. 287 (2007)
20 Sebastian Steinau, Kevin Andrews, and Manfred Reichert
20. Pichler, P., Weber, B., Zugal, S., Pinggera, J., Mendling, J., Reijers, H.A.: Imper-
ative versus Declarative Process Modeling Languages: An Empirical Investigation.
In: Business Process Management Workshops: BPM 2011 Int’l Workshops, Revised
Selected Papers, Part I. pp. 383–394. Springer (2012)
21. Reijers, H.A., Rigter, J.H.M., van der Aalst, W.M.P.: The Case Handling Case.
International Journal of Cooperative Information Systems 12(03), 365–391 (2003)
22. Steinau, S., Andrews, K., Reichert, M.: The Relational Process Structure. In: 30th
Int’l Conf. on Advanced Information Systems Engineering (CAiSE). pp. 53–67.
Springer (2018)
23. Steinau, S., K¨unzle, V., Andrews, K., Reichert, M.: Coordinating Business Pro-
cesses Using Semantic Relationships. In: 19th IEEE Conf. on Business Informatics
(CBI). pp. 33–43. IEEE Computer Society Press (2017)
24. van der Aalst, W.M.P., Weske, M., Gr¨unbauer, D.: Case Handling: A New
Paradigm for Business Process Support. Data & Knowledge Engineering 53(2),
129–162 (2005)
25. Weber, B., Mutschler, B., Reichert, M.: Investigating the Effort of Using Business
Process Management Technology: Results from a Controlled Experiment. Science
of Computer Programming 75(5), 292–310 (2010)
