DEEP METRIC AND HASH-CODE LEARNING FOR

CONTENT-BASED RETRIEVAL OF REMOTE SENSING IMAGES

Subhankar Roy1, Enver Sangineto1, Beg¨

um Demir2and Nicu Sebe1

1Dept. of Information Engineering and Computer Science, University of Trento, Trento, Italy

2Faculty of Electrical Engineering and Computer Science, TU Berlin, Berlin, Germany

ABSTRACT

The growing volume of Remote Sensing (RS) image archives

demands for feature learning techniques and hashing func-

tions which can: (1) accurately represent the semantics in the

RS images; and (2) have quasi real-time performance during

retrieval. This paper aims to address both challenges at the

same time, by learning a semantic-based metric space for con-

tent based RS image retrieval while simultaneously producing

binary hash codes for an efficient archive search. This double

goal is achieved by training a deep network using a combina-

tion of different loss functions which, on the one hand, aim

at clustering semantically similar samples (i.e., images), and,

on the other hand, encourage the network to produce final ac-

tivation values (i.e., descriptors) that can be easily binarized.

Moreover, since RS annotated training images are too few to

train a deep network from scratch, we propose to split the im-

age representation problem in two different phases. In the first

we use a general-purpose, pre-trained network to produce an

intermediate representation, and in the second we train our

hashing network using a relatively small set of training im-

ages. Experiments on two aerial benchmark archives show

that the proposed method outperforms previous state-of-the-

art hashing approaches by up to 5.4% using the same number

of hash bits per image.

Index Terms—deep hashing, metric learning, content

based image retrieval, remote sensing

1. INTRODUCTION

In recent years there has been a tremendous increase in the

volume of remote sensing (RS) image archives due to the con-

tinuous development of satellite technology. Thus, one of the

most important research topics in RS is the development of

scalable content-based RS retrieval (CBIR) methods, which

aim at retrieving the most similar images to a query image

from massive archives in an accurate and efficient manner. A

CBIR system generally consists of a two-step procedure: (1)

characterization of the content of each image by its descriptor;

and (2) computation of similarities between the query image

and the archive images based on the extracted descriptors.

One of the essential requirements for large-scale CBIR is

the fast similarity search. The conventional similarity search

methods, such as nearest neighbour search, are impractical for

large scale RS image archives, particularly when the dimen-

sion of the image descriptor is high. To achieve efficient sim-

ilarity search, hashing-based approximate nearest neighbour

search methods have been recently introduced in RS [1], [2].

Hashing methods encode high-dimensional image descriptors

using compact binary hash codes that significantly reduce the

storage cost and improve the computational efficiency. To this

end, hash functions are initially generated and then applied to

each image descriptor. In [1], the kernel-based locality sen-

sitive hashing techniques that learn hash functions in the ker-

nel space from hand-crafted features (e.g., the bag-of-visual-

words based on the scale invariant feature transform) are ap-

plied to RS CBIR problems. However, hand-crafted features

may not accurately represent the high level semantic content

of RS images. This leads to inaccurate retrieval results under

complex RS image retrieval tasks.

To address this problem, inspired by the progress of

deep convolutional neural networks (CNNs), a deep hashing

method has been recently introduced in the framework of RS

image retrieval problems [2]. This method jointly learns the

deep image features (which efficiently characterize the rich

semantic content of RS images and outperforms hand-crafted

features) and hash codes (which represent those deep features

with binary bits). To this end, their CNN architecture adopts

the cross-entropy loss to formulate the objective function.

The cross-entropy loss does not define any separation be-

tween positive and negative images due to the absence of a

margin threshold. This leads to poor generalization capabil-

ity, and thus long hash codes and a high number of annotated

training images are required to reach a high retrieval accuracy.

To address these issues, in this paper we present an ap-

proach that learns a semantic-based metric space, while si-

multaneously producing binary hash codes for fast and ac-

curate retrieval of RS images in large archives. Differently

from [2] the proposed approach provides more compact bi-

nary hash codes with a small number of annotated training

images.

2. METRIC AND HASH-CODE LEARNING

The lack of large annotated training images makes it challeng-

ing to train deep networks from scratch in RS. We propose to

solve this problem using two different stages. In the first stage

we use a pre-trained network (Inception Net [3]), trained on

ImageNet, in order to extract an intermediate image represen-

tation. In the second stage, this intermediate representation

is fed to our Metric and Hash-Code Learning Network (MH-

CLN). The latter is a smaller network which can be trained

from scratch using a relatively small dataset. This network is

trained using a combination of different losses, which simul-

taneously aim at clustering similar images while producing an

easy-to-binarize final representation. Specifically, we use the

triplet loss to learn a metric space where the Euclidean dis-

tance between pair of points corresponds to the semantic dis-

tance between the corresponding images. Moreover, we use

two other losses: (1) a representation penalty which pushes

the final network activations toward 0 and 1 and; (2) a balanc-

ing loss which incentivizes a balanced number of 0s and 1s in

the final hashing code. We provide below all the details.

Let I={X1, ..., XP}be the training set of RS im-

ages where Xiis associated with a class label yi∈ Y =

{y1, y2, ...}(e.g., “airplane”, “parkinglot”, etc.). Our goal is

to learn a hashing function h:I → {0,1}K, which maps

images to binary hash codes of length Ksuch that the gener-

ated binary codes embed the semantics of the corresponding

images. Using these codes, at testing time, retrieving the

most similar images to a given query image Xqis done by

(efficiently) comparing bitwise their binary hash codes.

In the first stage of the proposed approach, each image

in Iis fed to the pre-trained Inception Net [3] and a fea-

ture vector composed of the 2048 neuron activations of the

layer just before the softmax layer (pool3) is extracted. Let

G={g1, g2, ..., gP},gi∈IR2048, be the extracted features

corresponding to the set of images in I. Although the Incep-

tion Net was trained on a completely different set of images

(ImageNet), its high-level features capture general-purpose

visual semantics and we use this representation as a starting

point of our representation process. Note that the Inception

Net is not fine-tuned but used as a black-box to extract gi

from Xi:giis used as input of our MHCLN (Fig. 1).

In the second stage of the proposed approach we train

(from scratch) our MHCLN aiming at mapping each giinto

a semantically significant metric space: f: IR2048 →IRK.

The final hashing function is obtained by means of a quan-

tization of IRK. In order to learn the metric space we adopt

a triplet loss. The intuition behind the triplet loss (see Fig.2)

is that similar images should be clustered together in the tar-

get metric space, while different images should be pushed far

apart. To achieve this result, we use the class label (yi) asso-

ciated with each Xiand we impose that images of the same

class should be closer to each other than images of different

classes. More specifically, from Gwe extract a set of triplets

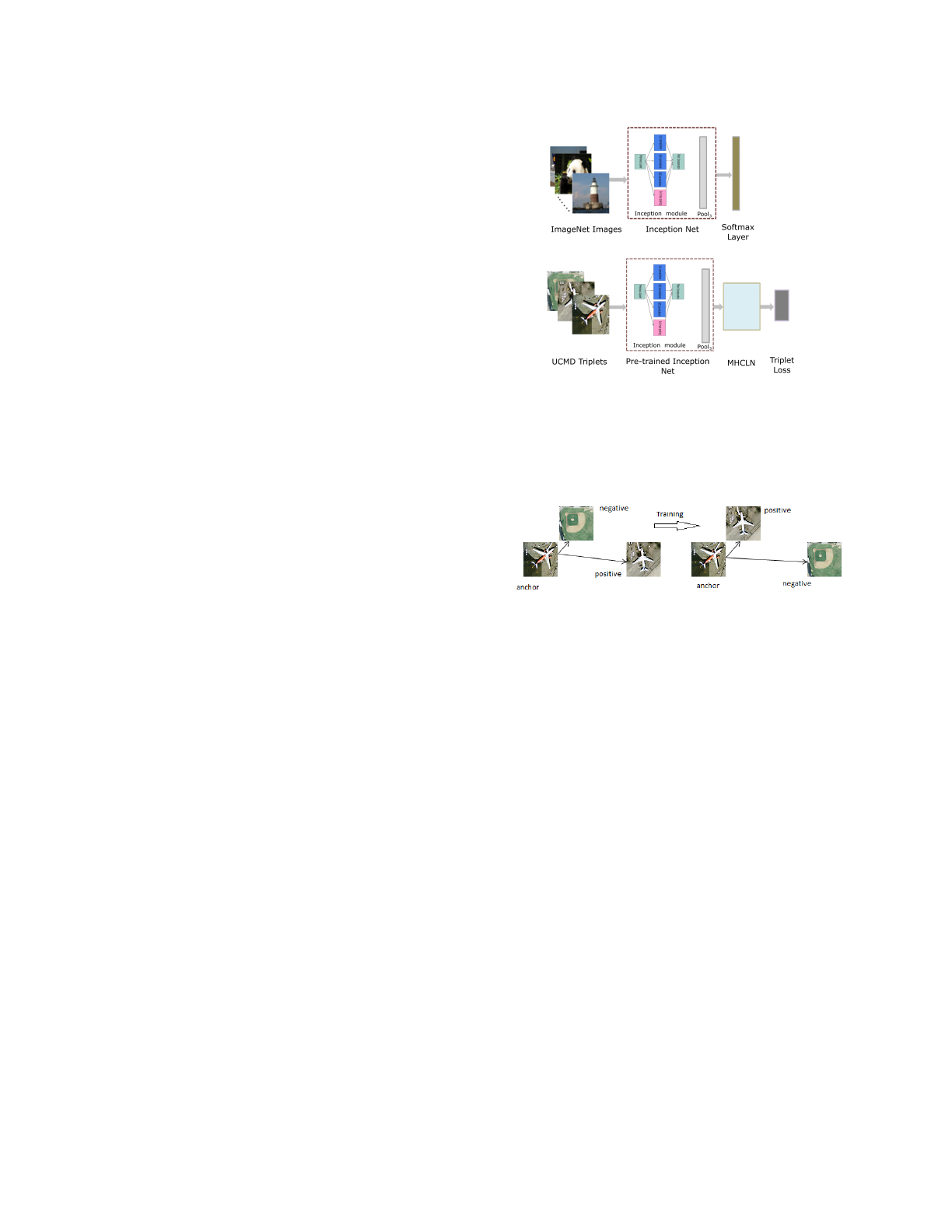

Fig. 1. Our two-step image representation process. Top: In-

ception Net, pretrained on ImageNet images. Bottom: Incep-

tion Net is used to extract an intermediate image representa-

tion, which is then fed to our MHCLN.

Fig. 2. The intuition behind the triplet loss: after training, a

positive sample is ”moved” closer to the anchor sample than

the negative samples of the other classes.

T={(ga

i, gp

i, gn

i)}, where ga

i(called anchor), is a randomly

sampled feature vector associated with label yi,gp

iis a posi-

tive sample (i.e., an image associated with the same class label

yi) and gn

iis a negative sample (i.e., an image associated with

a different class label yj6=yi). Using Tand a mini-batch of

cardinality M, randomly extracted from T, our triplet loss is

defined as follows:

LMetric =PM

i=1 max0,||f(ga

i)−f(gp

i)||2

2−

||f(ga

i)−f(gn

i)||2

2+α,(1)

where αis a minimum margin that is imposed between the

positive and the negative distances.

Our hashing network is composed of 3 fully-connected

layers, composed of 1024, 512, and Kneurons respectively,

where Kdepends on the number of desired bits in the final

hashing-based image representation. We use Leaky ReLU

non-linearities in the first two layers and a sigmoid in the last

layer, which produces neuron activations in [0,1]. In order to

push the latter toward the extremes of the range, similarly to

[4], we use a second loss which aims at maximizing the sum

of the squared errors between the last layer activations and

0.5:

Table 1. mAP and average retrieval time for the KSLSH [1] and the proposed MHCLN for the UCMD archive.

Image Features # Hash Bits K

Methods mAP Time (in ms) K=16 K=24 K=32

mAP Time (in ms) mAP Time (in ms) mAP Time (in ms)

SVM 0.556 92.3 - - - - - -

KSLSH [1] - - 0.557 25.3 0.594 25.5 0.630 25.6

Our MHCLN - - 0.875 25.3 0.890 25.5 0.904 25.6

LP ush =−1

KPP

i=1 ||f(gi)−0.51||2,(2)

where 1is the K-dimensional vector with all elements 1.

Finally, inspired by [4], we use a third loss function which

aims at balancing the number of 1s and 0s in the binary code

of each image representation:

LBalancing =PP

i=1(mean(f(gi)) −0.5)2,(3)

where mean(f(gi)) computes the mean of the activation val-

ues in the last layer of the hashing function.

The three losses are combined in our final objective:

L=LMetric +λ1LP ush +λ2LBalancing,(4)

with λ1= 0.001 and λ2= 1 that are selected using cross-

validation.

Once the network is trained, the final hashing function

h() is obtained by binarizing the values in IRK. Specifically,

given a test image X, which corresponds to an Inception-Net

feature vector g, we compute a binary code b=h(X), where,

for each 1≤n≤K:

bn= (sign(vn−0.5) + 1)/2,(5)

where v=f(g)and vnis the n-th component of v. Finally, in

order to retrieve an image Xjsemantically similar to a query

image Xq, we use the Hamming distance between h(Xq)and

h(Xj).

3. EXPERIMENTAL RESULTS

Experiments were conducted on two different benchmark

archives. The first one is the widely used UC Merced

(UCMD) [5] containing 2100 images from 21 different cat-

egories, where each category includes 100 images (each of

size 256 ×256 pixels with a spatial resolution of 30cm). The

second one is the Aerial Images Dataset (AID) [6] containing

10000 aerial images from 30 different categories, where each

category includes 220 to 420 images (each of size 600 ×600

pixels with a spatial resolution ranging from 50cm to 8m).

The proposed MHCLN1was trained by choosing a mini-

batch of triplets of cardinality M=30, which comprises of 30

1Code is available at https://github.com/MLEnthusiast/

MHCLN

anchors, positives and negatives each. The value of the thresh-

old margin, α, was set to 0.2. For the loss function optimiza-

tion, Adam Optimizer was used with a small learning-rate η

=10−4. The other two hyper-parameters of the Adam Opti-

mizer, β1and β2were set to 0.5 and 0.9 respectively.

The performance of the proposed approach is evaluated

through the mean average precision (mAP) score, also used

in [2]. For the UCMD archive results achieved with the pro-

posed MHCLN are compared with those obtained by: 1) Sup-

port Vector Machine (SVM) classifier; 2) the Kernel-based

Supervised Locality Sensitive Hashing (KSLSH) [1]; and 3)

the Deep Hashing Neural Networks (DHNN) [2]. Results of

each method are provided in terms of computational time and

the mAP score that are evaluated for the top-20 retrieved im-

ages. In the experiments: i) Gaussian Radial Basis Function

kernel was used for the SVM and KSLSH; and ii) the number

Kof hash bits is varied in the range [16-64] with a step size

increment of 8. In the experiments, we have considered two

different scenarios. In the first scenario, we did not include

any data augmentation and have selected 60% of images as-

sociated to each category as training images (which are used

to train the MHCLN), while the rest is considered as test im-

ages (which are used to evaluate the retrieval performance).

Table 1 shows the results of the first scenario obtained

by the SVM, the KSLSH and the proposed MHCLN when

K=16, 24 and 32. We would like to point out that due to

lack of availability of code of the DHNN we could not report

its results within this scenario. From Table 1, one can see that

the proposed MHCLN provides 31.8% higher mAP compared

to the KSLSH for K=16 under the same retrieval time. In

addition, the proposed MHCLN yields a mAP 31.9% higher

with respect to the SVM with significantly reduced retrieval

time. From our analysis, we have also seen that increasing

the number Kof hash bits leads to higher mAP at the cost of

slightly increasing the retrieval time.

Fig 3 shows a single trial of the retrieval results with the

query image selected from the airplane category by apply-

ing the KSLSH [1] and the proposed MHCLN. The retrieval

order of each image is given below the related image. By

visually analyzing the results, one can see that the proposed

method retrieves semantically more similar images from the

archive. As an example, the 4th and 19th retrieved images

by the KSLSH method belongs to the freeway and storage

tanks categories, respectively, whereas those by the proposed

method belong to the airplane category.

In the second scenario, we have considered data augmen-

tation as suggested in [2] and compared the proposed MH-

CLN with the DHNN [2]. To have a fair comparison 2100 im-

ages are rotated by 90◦, 180◦and 270◦, producing 8400 im-

ages. Then, among these images, 1000 images are randomly

chosen as test images while the remaining 7400 images are

selected as training and searching images as suggested in [2].

Table 2 shows the results obtained by the proposed MHCLN

and the DHNN when K=32 and K=64 for the top-50 retrieved

images. By analyzing the results one can see that hash codes

obtained by the proposed method are generally more distinc-

tive than those of the DHNN when small values of hash bits

are considered. As an example, the proposed method yields

5.4% better mAP when K=32. It is worth noting that the data

augmentation approach adopted in [2] may lead to the pres-

ence of rotated but identical images in both the train and test

sets. This causes the network to memorize the test samples

(rotated variants) during training. However, we have adopted

this evaluation approach to fairly compare with their method.

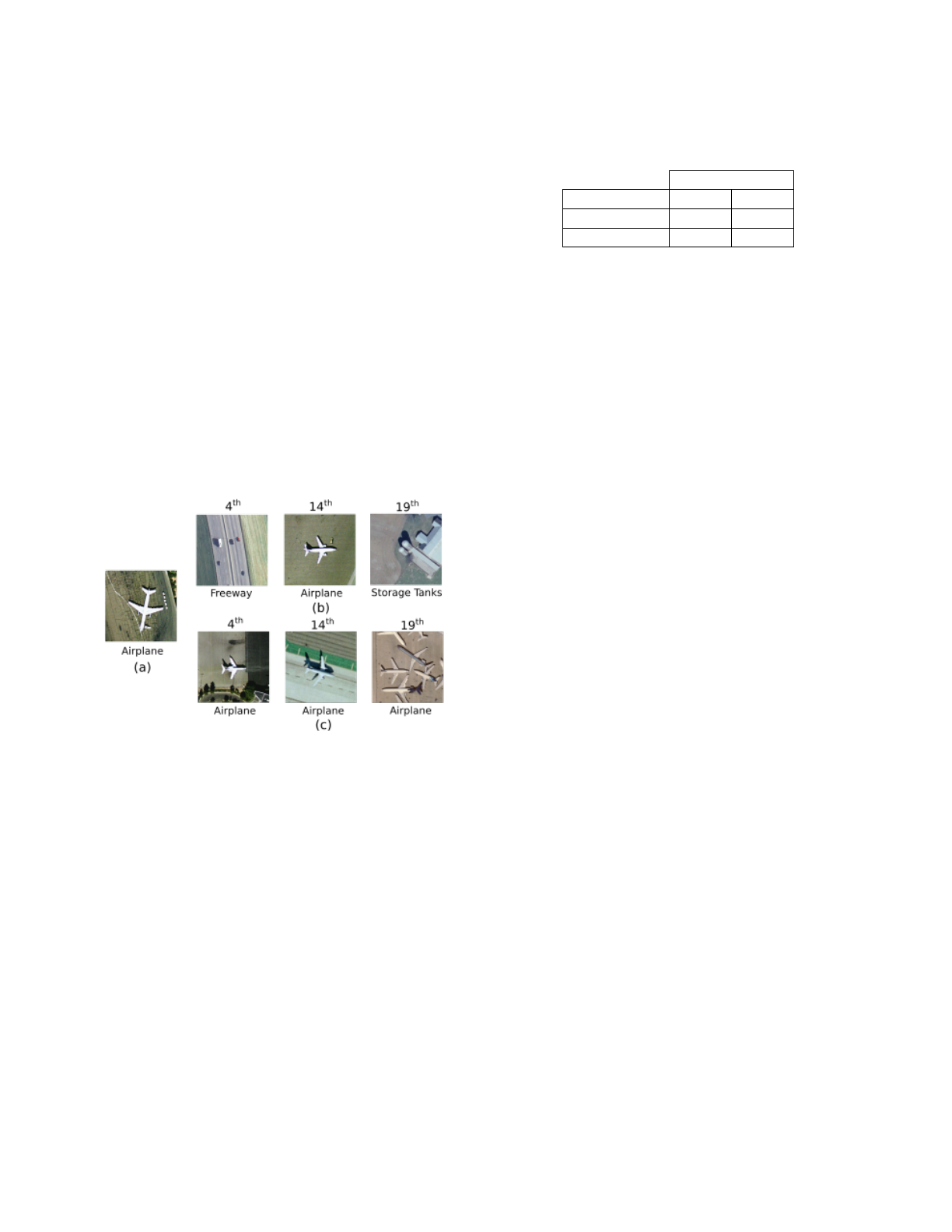

Fig. 3. (a) Query image, (b) images retrieved by KSLSH [1]

and (c) images retrieved by the proposed MHCLN.

For the AID archive we have chosen a 60:40 split of im-

ages from each category, similar to the UCMD archive. For

this archive, results achieved with the proposed MHCLN are

compared with the SVM and the KSLSH. From the results,

we observed that the same relative behavior with respect to

the UCMD archive is obtained. As an example, for the pro-

posed MHCLN we obtain 40.66% higher mAP, for K=32,

when compared to the KSLSH under the same retrieval time.

In addition the proposed MHCLN yields a mAP of 91.14%,

which is 0.37% higher than that obtained by the SVM with

retrieval time reduced by one order of magnitude.

4. CONCLUSION

In this paper, we have introduced a deep metric and hash-

code learning approach for fast and accurate image search

and retrieval in large RS data archives. The proposed ap-

Table 2. mAP obtained by the DHNN [2] and the proposed

MHCLN with data augmentation for the UCMD archive.

# Hash Bits K

Methods K= 32 K= 64

DHNN [2] 0.939 0.971

Our MHCLN 0.993 0.995

proach is defined based on two main stages. In the first stage,

an intermediate representation is obtained for each image in

the archive by exploiting the pre-trained network (Inception

Net), while in the second stage a hashing network is trained

by considering different losses (e.g., triplet loss, representa-

tion penalty and a balancing loss) to represent each image

by binary hash code. Experimental results point out that the

hash codes obtained by the proposed approach: 1) efficiently

characterize the complex content of RS images; 2) enable fast

image search and retrieval through compact hash codes; and

3) can be learnt using a relatively few annotated training im-

ages. As a future development of this work, we will extend

our approach to the framework of other deep networks.

5. ACKNOWLEDGEMENTS

This work was supported by the European Research Coun-

cil under the ERC Starting Grant BigEarth-759764. We also

want to thank the NVIDIA Corporation for the donation of

the GPUs used in this project.

6. REFERENCES

[1] B. Demir and L. Bruzzone, “Hashing-based scal-

able remote sensing image search and retrieval in large

archives,” IEEE Transactions on Geoscience and Remote

Sensing, vol. 54, no. 2, pp. 892–904, 2016.

[2] Y. Li, Y. Zhang, X. Huang, H. Zhu, and J. Ma, “Large-

scale remote sensing image retrieval by deep hashing neu-

ral networks,” IEEE Transactions on Geoscience and Re-

mote Sensing, 2017.

[3] C. Szegedy, V. Vanhoucke, S. Ioffe, J. Shlens, and Z. Wo-

jna, “Rethinking the inception architecture for computer

vision,” in CVPR, 2016.

[4] H.-F. Yang, K. Lin, and C.-S. Chen, “Supervised learn-

ing of semantics-preserving hash via deep convolutional

neural networks,” IEEE Transactions on Pattern Analysis

and Machine Intelligence, 2017.

[5] Y. Yang and S. Newsam, “Bag-of-visual-words and spa-

tial extensions for land-use classification,” in SIGSPA-

TIAL, 2010, pp. 270–279.

[6] G.-S. Xia, J. Hu, F. Hu, B. Shi, X. Bai, Y. Zhong, L.

Zhang, and X. Lu, “Aid: A benchmark data set for per-

formance evaluation of aerial scene classification,” IEEE

Transactions on Geoscience and Remote Sensing, 2017.
